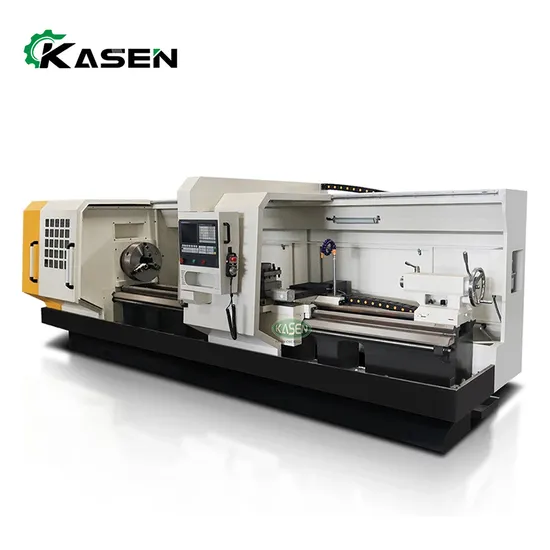

Big CNC Lathe Qk1327 Heavy Duty CNC Lathe Torno

Product Description

Heavy Duty Cnc Lathe Machine Automatic Qk1313big Spindle Bore Cnc Pipe Thread Lathe
Product Description
CNC PIPE THREADING LATHE INTRODUCTIONThis series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric,inch,module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.FEATURESBig spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precisionUltrasonic frequency quenched guide-ways ensure good wear-resistanceCarriage and guide way contact surface use Turcite B to maintain accuracy
Product Parameters

SPECIFICATION	Units	QK1313	QK1319	QK1322	QK1325	QK1327
Swing over bed	mm	630/800	630/800	630/800	800	800
Swing over cross slide	mm	340/520	340/520	340/520	480	480
Distance between centers	mm	1000/1500/3000	1000/1500/3000	1000/1500/3000	1000/1500/3000	1000/1500/3000
Pipe threading range	mm	30-126	50-193	50-220	120-250	130-270
Guideway width	mm	550	550	550	600	600
Max. load capacity	T	3	3	3	4	4
Spindle bore	mm	130	200	225	255	280
Spindle speed steps	-	VF. 3 steps	VF. 4 steps	VF. 4 steps	VF. 4 steps	VF. 4 steps
Spindle speed range	rpm	30-720	20-550	20-550	20-420	20-420
Chuck	mm	φ400 3-jaw manual	φ500 3-jaw manual	φ500 3-jaw manual	φ630 4-jaw manual	Φ800 4-jaw manual
Turret/tool post	-	CNC turret 4 position	CNC turret 4 position	CNC turret 4 position	CNC turret 4 position	CNC turret 4 position
Tool shank size	mm	32 x 32	32 x 32	32 x 32	32 x 32	32 x 32
X axis travel	mm	320/420	320/420	320/420	420	420
Z axis travel	mm	850/1350/2850	850/1350/2850	850/1350/2850	850/1350/2850	850/1350/2850
X axis rapid traverse	mm/min	4000	4000	4000	4000	4000
Z axis rapid traverse	mm/min	6000	6000	6000	6000	6000
Tailstock quill diameter	mm	φ100	φ100	φ100	φ120	φ120
Tailstock quill taper	-	MT5	MT5	MT5	MT6	MT6
Tailstock quill travel	mm	250	250	250	250	250
Main spindle motor	kW	11	11	11	15	15
Coolant pump motor	kW	0.125	0.125	0.125	0.125	0.125
Weight for 1000	kg	4500	4600	4700	6000	6200
Weight for 1500	kg	5000	5100	5200	6500	6700
Weight for 3000	kg	6000	6100	6200	7500	7700
Dimension for 1000	mm	3300x1800x1850	3300x1880x1850	5000x1880x1850	3600x1930x1900	3600x1930x1900
Dimension for 1500	mm	3800x1800x1850	3800x1880x1850	6500x1880x1850	4100x1930x1900	4100x1930x1900
Dimension for 3000	mm	5300x1800x1850	5300x1880x1850	7500x1880x1850	5600x1930x1900	5600x1930x1900

Detailed Photos
Company Profile
Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
