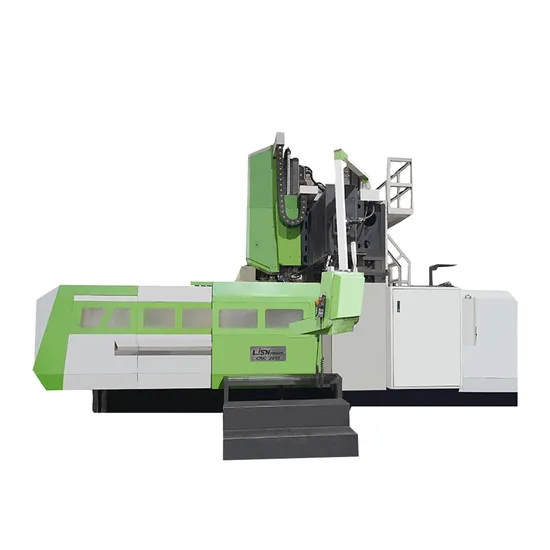

Multi-Task Fanuc/Siemens Gl2013 Small Double Column CNC Milling Machine CNC Gantry Machining Center Gantry Miis Double Column Gantry CNC Milling Machine

Product Description

Product Description
The 4-axis version of the DY-2013 features high rigidity and precision. Its' fuselage and base are made of high quality and high hardness materials, with excellent fuselage structure, the rigidity and stability of the whole machine is very high. The head group is a heavy - duty box structure with reinforced internal ribs and high rigidity. The machine is also equipped with high speed and high performance spindle, which can not only meet the requirements of finishing but also achieve low speed heavy cutting.
The bed and worktable of the machine are made of high strength cast iron and resin sand. X-axis guide rail adopts heavy load guide rail support structure, and the position and number of high-load sliders are reasonably arranged on each roller linear guide according to the mechanical principle, so that the machine tool can obtain high rigidity and long-term stable accuracy.

This machine can be selected 4 axis or 5 axis version base on your processing requirements.

Detailed Photos
Product Parameters

ITEM	MODELS	DY2013
WORKTABLE (WIDTH*LENGTH)	mm	2200*1100
MAX LOAD BEARING OF WORKTABLE	t	6
X/Y/Z AXIS TRAVEL	mm	2000/1300/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	150-950
SPINDLE HOLE TAPER		BT50
SPINDLE SPEED RANGE	r/min	6000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT
DISTANCE BETWEEN TOW COLUMNS	mm	1300
X/Y/Z RAPID FEED SPEED	m/min	12/12/10
MAX CUTTING FEED SPEED	m/min	10-7000
X/Y/Z POSITION ACCURACY	mm	±0.015/300
X/Y/Z RE-POSITION ACCURACY	mm	±0.01
MACHINE DIMENSION	mm	6110*4282*4565
MACHINE WEIGHT	T	21
POWER DEMAND	KVA	35
AIR PRESSURE	m ³mim	7

Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
