US$3,500.00-8,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max. Table Load(Kg)
160 Kg
Spindle Motor Power(Kw)
5.5/7.5
Transport Package
Wooden Case
Specification
Universal Milling Machine
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg

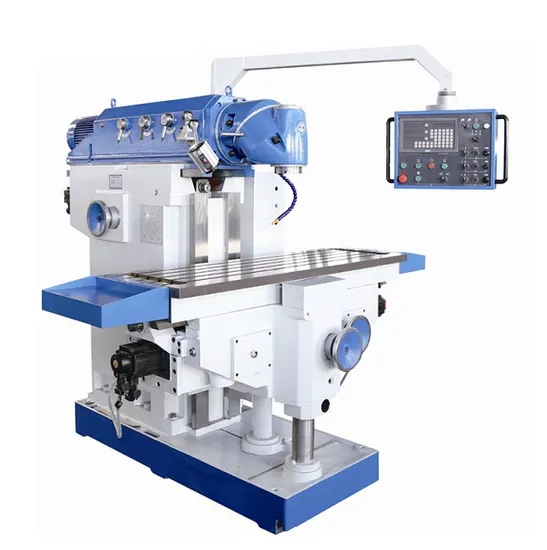

Product Description
Product Description
Main Feature
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy
F,It can mill any angle surface through front half-sphere by swivelling milling head.
Specification
| Specifications | Unit | X5746 | X5750 | X5750A |
| Table size | mm | 460*1235 | 500*1600 | 500*2000 |
| T-slots(NO./width/pitch) | mm | 5*18*80 |
| Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 | 1400*700*500 |
| Swivel angle of milling head | - | 360° |
| Spindle taper | - | ISO40 | ISO50 | ISO50 |
| Spindle speed range | r.p.m | (27) 30-2050 |
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 |
| Table rapid speed | mm/min | 2200/2200/1100 |
| Distance between spindle nose and table surface | mm | 50-500 | 50-550 |
| Distance from spindle center line to column | mm | 36-686 | 45-745 |
| Main motor power | Kw | 5.5 | 7.5 | 7.5 |
| Feed motor | Kw | AC servo motor X/Y:18NM; Z: 27NM |
| Max load | Kg | 800 | 1800 |
| Overall size | mm | 1835*2362*2090 | 2625*2460*2080 | 2625*2860*2080 |
| weight | kg | 3600 | 4200 | 4500 |
STANDARD ACCESSORIES:
No. |
Name |
Detail |
Qua |
Rmk |
| 1 | Milling machine | X5750,X5750A | 1 | |
| 2 | Draw bar | | 1 | |
| 3 | Machine chuck | ISO50-ER40 | 1 | |
| 4 | End face milling cutter handle | 7:24 ISO50 Φ40 | 1 | |
| 5 | double-ended wrench | 12x14 | 1 | |
| 6 | double-ended wrench | 22x24 | 1 | |
| 7 | Allen wrench | 5 | 1 | |
| 8 | Allen wrench | 8 | 1 | |
| 9 | Allen wrench | 10 | 1 | |
| 10 | Operation manual | | 1 | |
| 11 | Certification | | 1 | |
| 12 | Packing list | | 1 | |
| 13 | EP1C series servo drive manual | | 1 | |
