Advanced Electric Water Heater Production Line Machines for Spot Welding & Cover Machine

US$1,860.00-2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
inner tank welding machine
Style
Portable
Shielding Gas
Carbon Dioxide
Frequency Range
High Frequency
Electric Current
AC
Type
Fusion
Automatic Type
Semi-Automatic
Welding Type
MIG Welding
Transport Package
Wooden Box
Specification
1.5 tons
Trademark
zhengfulong
Origin
Shunde Disctrict, Foshan City, Guangdong Province
HS Code
8468200010
Production Capacity
10set /Year

Product Description


pre-Spot&seam welding automatic welding machine technical parameters table
No. Item Unity Parameter Remarks
1 Applicable diameter mm φ300,φ340,φ370 Different diameters need to replace the corresponding mold
2 Total length of the inner cylinder min mm 290
max 800
3 Applicable sheet thickness mm 1.5~2
4 Original sheet strength MPa ≤250
5 Total installed capacity kW 1.5 Welding power is not included
6 Overall dimensions (without receiving rack) m 2.1x2x1.5 Length x width x height
7 weight Ton 1.2
8 welding rate mm/s 700~1200
9 Walking rate mm/s ≤3000
10 Staffing PCS 0

Guangdong Zhenfulong Machinery Equipment Co., Ltd. is located in Shunde, Foshan, a manufacturing base for private enterprises in China. The company has always focused on the development and manufacturing of equipment in the electric water heater industry. Its main equipment includes: automatic stamping line for inner cover sealing, inner welding production line for electric water heaters, inner cleaning line, inner automatic sandblasting equipment, inner automatic coating equipment, inner enamel curing furnace, inner pre assembly production line, and inner final assembly production line. Other business scope includes intelligent factory planning, LCIA simple intelligent self-service, Industry 4.0 practice, digital factory informatization, industrial internet, intelligent talent cultivation, and high-tech enterprises engaged in the design and manufacturing of intelligent high-end equipment for the most lean production and automation, with an annual sales volume of 30 million RMB. The production base is located in Nansha District, Guangzhou, and its holding company is Guangdong Xiangtian Technology Co., Ltd.

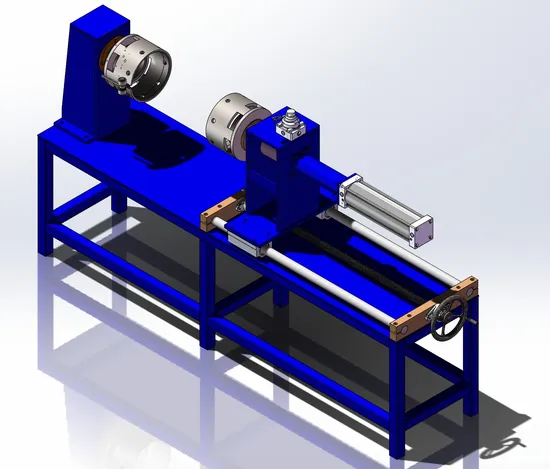

Circular seam welding machine for electrical water heater inner tank, accoding to customer's requipment.
