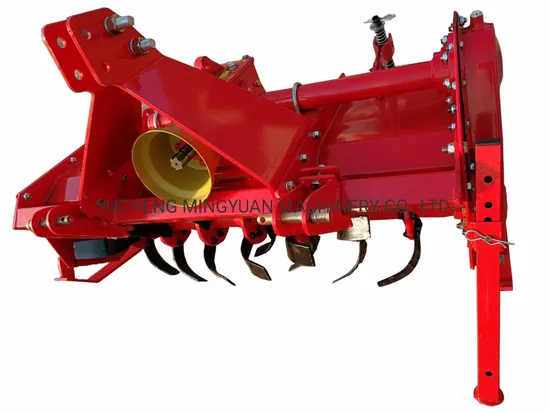

Light Duty Rototiller Rotary Tiller Rotavator

Product Description

Transmission: chain driven. Gearbox is made of casting iron. Material performance is better. Not easy broken. The suspension plate shape is not easy to deform. Chain device hand adjustable. More easy and reliable. Side protection plates are added onto the rear deflection. This device prevents the soil flying out. The tilling height can be adjustable. The structure is firm and stable. 3 point PTO shaft Kubota Cultivator Rotary Tiller side driven rotary tiller rotavator for sale
1. Adopt the middle gear transmission system, mounted with the tractor of 12-80HP.
2. Tractor wheel tracks are completely covered after tillage as the working width is much wider.
3. The quality is reliable and the performance is well. So it can be used on dry and paddy field.
It can reduce the time, laboring and cost during operation.

Model	TL-85	TL-95	TL-105	TL-115	TL-125	TL-135	TL-140
Dimensions(L*W*H)	1025*800*700	1125*800*700	1250*800*700mm	1350*800*700	1450*800*700mm	1550*800*700mm	1600*800*700
Weight	180KG	190KG	200 kg	210KG	220kg	235kg	240kg
No. of blades	16	16	20	24	24	28	28
Working width	850MM	950mm	1045mm	1150mm	1245mm	1345mm	1395mm
Working depth	120MM	120mm	120mm	120mm	120mm	120mm	120mm
PTO Input speed	540r/min	540r/min	540r/min	540r/min	540r/min	540r/min	540r/min
Power required	12~18hp	15~20	18~-22HP	20~25hp	22-28 HP	24-30 HP	25~30

---
