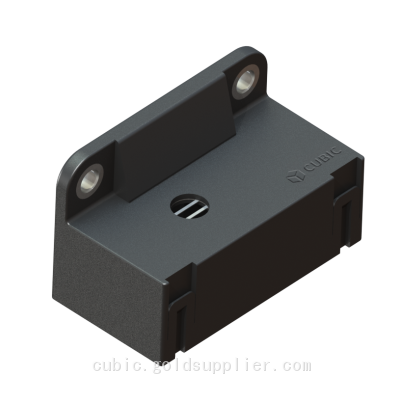

Li-battery Thermal Runaway Detection Integrated Sensor ATRS-1032

Product Details

Product Details

Product Description

Product Description
Introduction
Cubic ATRS-1032 is a lithium-ion battery thermal runaway monitoring sensor based on light scattering and MEMS thermal conductivity (TC) technologies. The ATRS-1032 is specifically designed to effectively monitor the concentration of particulate matter and H2 released during the early stages of thermal runaway while transmitting warning signals to the battery management system (BMS).
ATRS-1032 features fast response time, less cross interference with other gases, low power consumption, and high reliability, widely used for applications of Li-battery electrical vehicle and energy storage system.
Features
1. Fast response time (<1s)
2. Less cross interference with other gases
3. Low power consumption
4. Innovated combined sensing components for more reliable monitoring
Specifications
Detection CategoryH2, Particular Matter
Operating PrincipleH2: Thermal ConductivityParticular Matter: Light Scattering
Measurement RangePM: 0-10,000μg/m³H2: 0~4%vol
Measurement AccuracyPM: ≤ ±15%@5000μg/m³, 25℃H2: ± (10% of reading +0.1%vol)
Response Time<1s
Average Working CurrentNormal Working Mode: ≤ 60mALow Power Mode: ≤ 100μA
Design Lifetime>15 Years
Working Condition-40℃~+85℃; 0~95%RH (non-condensing)
Storage Condition-40℃~+95℃; 0~95%RH (non-condensing)
Power Supply9~32VDC (Rated voltage +12VDC/+24VDC)
CommunicationCAN
