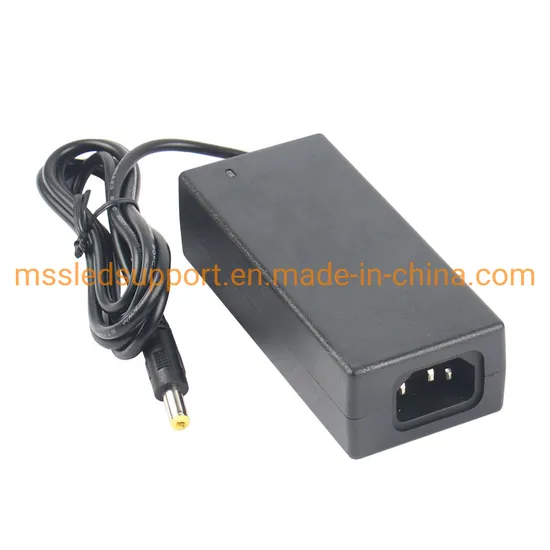

5.5*2.1mm Output Universal AC to DC 12V 3A 24V 1.5A Laptop Power Adapter with FCC CE ROHS approval
| Name: | 12V 3A Laptop Power Adapter |
| Input Voltage: | 100-240V |
| Frequency range: | 50-60HZ |
| Output: | 12V3A / 24V1.5A |
| AC Plug: | US/UK/AU/EU |
| DC Connector: | 5.5*2.1MM/5.5*2.5MM |
| Length of DC cable: | 1.2M |
| Product Dimension: | 110*45*30MM |
| Product Weight: | 0.4KG |
| Packing: | Neutral paper box for each unit. |
| | K=K export standard outer carton. |
| | Cartons Size : 41x40x30CM |
| | 50 pcs/one carton |
| | one carton weight: 20 KG |
| Protection: | Over current/Over voltage/Short circuit protection |
| Warranty: | 2 Year |
| Conversion efficiency: | ≥ 80% |
| Ripple & Noise: | (mVp-p): < 1% |
| Line Regulation: | ± 0.5% max |
| Load Regulation: | ± 1% max |
| Temperature coefficient: | ± 0.03% (0 ~ 50°C) |
| Start time: | ≤ 3s (240VAC input, io=100%) |
| Guard time: | ≥ 20ms (240VAC input, io=100%) |
| Working temperature: | -10°C ~+ 40°C |
| Storage temperature: | -10°C ~+ 40°C |
| Storage temperature: | -40°C ~ +70°C |
