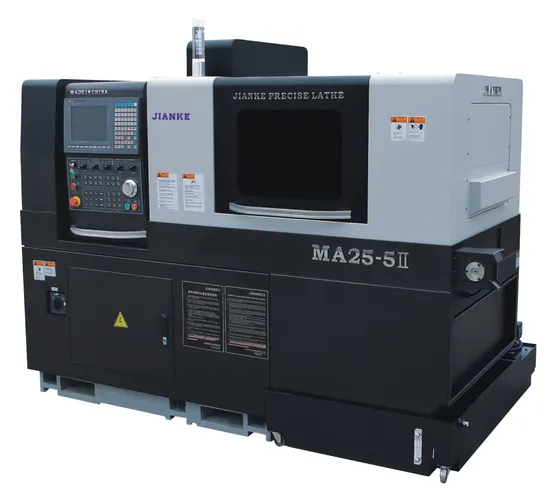

| Swiss type CNC lathe double spindle 5 axis model MA25-5II | Main spindle & Sub spindle |
| ·excellent performance·ability powerful·Operate flexbile | ·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit. |
| Double Spindle Swiss CNC Lathe MA25-5 II | |||
| System | Fanac | Fanuc Oi-TF PIus | |
| Control channels | Dual channel | ||
| Minimum setting unit | 0.001mm | ||
| Machining Ability | Max processing diameter | 25 mm | |
| Maximum single feeding length | Rotary guide bush | 195mm | |
| Without guide bush | 1:2.5D(Dia:Length) | ||
| Main spindle max drilling Dia | axial (main spindle) | Φ10mm | |
| Main spindle tapping Dia | axial | M8 | |
| Rotary tools max drilling Dia | radial | Φ8mm | |
| Rotary tools max tapping Dia | radial | M6 | |
| Sub spindle max drilling Dia | Axial (sub spindle) | Φ8mm | |
| Sub spindle max tapping Dia | axial | M6 | |
| Tools | Tool base arrangement | Upper row tool base | |
| Main spindle O.D. tools | 6 pieces | 1*10X10mm+5*12X12 | |
| Main spindle side rotary live tools | 4 pieces | 2*ER11+2*ER16 | |
| Main spindle end face fixed tool | 4 pieces | ER11/ER16 | |
| Sub spindle end face fixed tool | 4 pieces | ER11/ER16 | |
| Spindles | Main/Sub spindle type | Internal oil cooling electric spindle | |
| Main/Sub spindle speed | 10000rpm/min | ||
| Main/Sub spindle indexing | 0.001° | ||
| Main/Sub spindle through hole Dia | 26mm | ||
| Main/Sub spindle height | 1018.5mm | ||
| Motors | Main spindle power(Rated/Max) | 2.5kw/3.7kw | |
| Sub spindle power(Rated/Max) | 2.5kw/3.7kw | ||
| Side rotary tools motor power | 1.0kw | ||
| Side rotary tools speed | ER11*2 pieces | 10000rpm/min | |
| ER16*2 pieces | 6000rpm/min | ||
| Moving axis | 5 axis | X1,Y1,Z1,X2,Z2 | |
| Rapid feeding speed | X1 | 24m/min | |
| Y1,Z1,X2,Z2 | 32m/min | ||
| Motor power of moving axis | 1.0kw | ||
| Others | Parts collector | Short parts | Belt conveyor to collect parts |
| Long parts | rear ejection from sub spindle | ||
| Power capacity | 15kw | ||
| Air pressure | ≥0.4MPa | ||
| Capacity of machining oil tank | 250L | ||
| Lathe size | 2.4m×1.4m×1.7m | ||
| Lathe weight | 3050KG | ||
