PVA/ Pvoh Water Soluble Film for Laundry Detergent Pod Capsule Bead Packing Machine

Product Description

PVA Film Water Soluble Laundry Detergent Pods Making Machine

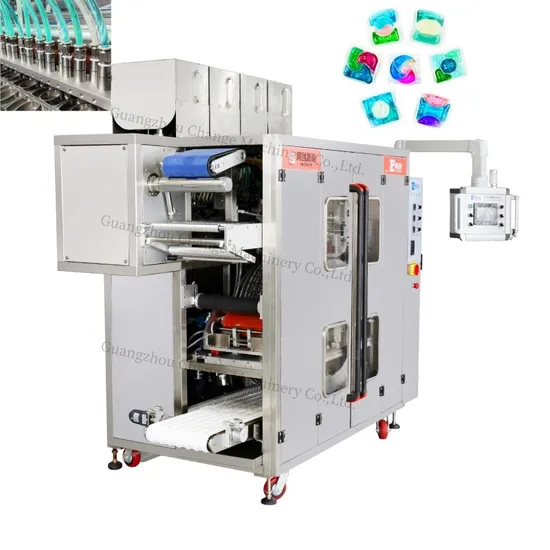

Machines photos:
Laundry Detergent Beads / Pods Photos:
Machine Introduce:
Ourdfull automatic water dissolvable PVA film packing machine can used to measure an pack pesticide,detergent, medical powder/granule/liquid etc,. Water soluble PVA film has good tensile strength. The product is elastic globular after the film stretching and packing.
This machine adopts full automatic control packing way. It can automatically make pod, fill, seal, cut and discharge.It don't need people to touch the materials, easy operation.
Products Applicable:
Luandry Detergents
Clothes Washing Detergents
Glass Cleaning Detergents
Kitchen Cleaning Detergents
Industrial disinfectants
Chemicals for water treatment
Conditioners
Neutralization
Pigments
Superabsorbents
Building mixes
Animal Care
Advantages of packaging in the water-soluble film:
Accurate weight premeasured doses of the product (Not required for further weighing or measuring)
Safe handling - no chemicals in contact with skin, comfortable and easy to use.
Avoid dust inhalation
No loss of product spills
Machine Features:
External high vacuum pump from Germany,no pollution.
Push-pull Siemens smart touch screen(include communication cables) and Siemens PLC.
Panasonic inverter speed-regulating system(include communication cables).
Panasonic servo rinse system.
Temperature sensors and controllers made by Siemens Germany.
Power off phase and reverse phase protection.
Electric leakage protection system, automatically cut off the power supply when it occur, to protect safety of operators.
Integral side plate support made of aluminum alloy,high strength and good straightness,hardly to distort.
Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top film and bottom film.
Good quality stainless steel chain from Italy/Japan.
Pneumatic components Japan SMC.
Equiped with film trim winder.
Equipped with films deviation automatic correction system.
Equipped with film tension regulation system, the computer can automatically identify sizes of rollers, automatically adjust the tension of the films to keep the same stress of upper and lower films.
With automatic liquid filling system.
Technical Parameters List:

Name	PVA Water Soluble Film Laundry Detergent Beads Making Machine Water Soluble Laundry Detergent Capsules Producing Machine High Speed Clothes Washing Capsules Making Machine High Speed Laundry Detergent Pods Packing Machine Water Soluble PVA Film Kitchen Cleaning Detergent Beads Making Machine High Speed Laundry Detergent Beads Producing Machine PVA Water Soluble Film Laundry Detergent Pods Making Machine High Speed Laundry Detergent Pods Producing Machine PVA Water Soluble Film Clothes Washing Detergent Beads Making Machine High Speed Clothes Washing Detergent Beads Producing Machine PVA Water Soluble Film Clothes Washing Detergent Pods Making Machine High Speed Clothes Washing Detergent Fragrant Pods Producing Machine High Speed Clothes Washing Detergent Scent Beads Making Machine High Speed Clothes Washing Detergent Fragrant Beads Packing Machine
Packing material	PVA water soluble film
Filling system	Ceramic pump for liquid detergent, auger / screw for powder, volumetric cups for scent granules.
Dynamic system	Mechanical drive+Gearing+Pneumatic
Operation system	PLC+ Touch screen
Machine material	SUS 304 bodyshell and frame, the parts contact with detergent are SUS316L.
Molds processing	Hardened 520 aluminum oxidation treatment
PVA water soluble film width	360mm, 540mm, 660mm
Rows number	4 rows, 5 rows, 6 rows, 8 rows, 10 rows.
Capacity	8 rows Approx 400pcs/min, 10 rows Approx 600pcs/min
Each pod weight	5-35ml
Beads / Pods patterns	Can be customized.
Cavity number each bead	1 cavity, 2 cavities, 3 cavities, 4 cavities, max 5 cavities.
Packing size	37*53*20mm (Not include sealed edges.) Pods size can be customized according to customers' requirements.
Power voltage	AC380V 50HZ 3Phases
Pneumatic	0.6-0.8MPa, 150L/min
Gross Weight	1600Kg
Dimension	L5300×W1250×L3300mm

Packaging & Shipping After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer. We will send some free set of spare parts for you change it.
Payment terms:
By T/T, 30% deposit before production, the balance should be paid the delivery date, we also accept L/C payment.
Export Package:
Standard wooden package cases.
Shipment terms:
FOB, EXW, CIF, CFR, CNF.
Our Company Info:
Guangzhou Change Machinery Co.,Ltd. is a professional supplier of sachets packing machines, bottles/jars filling machines, labeling machines, sealing and capping machines, and various customized production lines, with reasonable price, reliable quality, considerate pre- and after sale services.
We value our customers feedback with great attention and we always explore new technologies to improve our products and our services to meet our customers' needs. Our Company Motto:"We Change, we get Chance; We never change our faith!" Based on this principle, we aim at a pleasant and mutual beneficial business relationship with our customers and partners all over the world.

---
