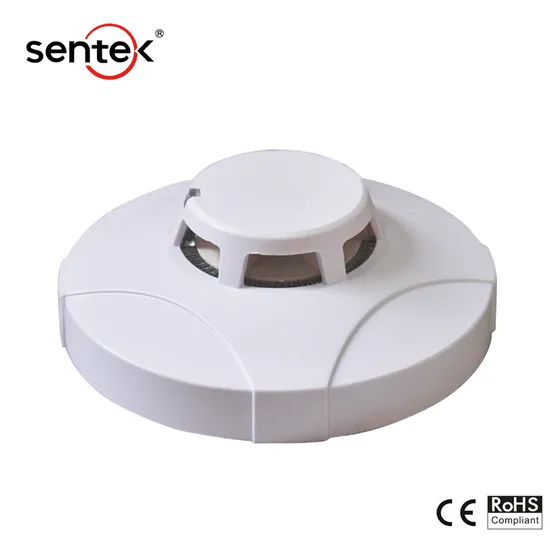

CE, Conventional 2-Wire Fixed Temperature Heat Detector CD1100

Product Description

Specification:
CD1100 is a conventional smoke detector, adopted non-polarity 2-Wire technology. The design incorporates a highly integrated 8 bit professional MCU which provides powerful analysis & judgment capacity and reliability. Apply to the place wher e can not
install smoke detector.

Smoke Sensitivity	A1S:60°C A1R:8.5°C/Minutes
Ceiling Spacing	cover radius is 6m (storey height less than 6m)
Reset Voltage	less than 6 volt
Reset Time	less than 2 second
Alarm Indicator	LED continuously emitting red light
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Humidity	0 to 95% RH, no condensation or icing
Dimensions	106mm (dia.) x 35mm (ht.) with base
Weight	73g/set with base

CE,Conventional 2-Wire Fixed Temperature Heat Detector
Product Specification:

Model	2/4 wire	Voltag e DC (Min./Max.)	Standby Current (Min./Max.)	Alarm Current (Min./Max.)	Surge Current (Max.)	Start-up Time (Max.)	Base Model No.
CD1100	2	10~33V	80~95μA	25~38mA	135μA	20 Secs.	12B1

Product Features:
• 2-wire (without Remote LED output).
• Easy installation.
• Wide voltage range, and stable output.
• Sleek low-profile housing design.
• Advanced detection and smoothing algorithms.
• Low cost, high performance.
• Reliable early warning of a fire condition.
• Five-year limited warranty.
• Durable sensor head, no need for replacement.

---
