Steel Drive in Pallet Rackings for Industrial Warehouse Storage Solutions

Product Description

Steel Drive in Pallet Rackings for Industrial Warehouse Storage Solutions

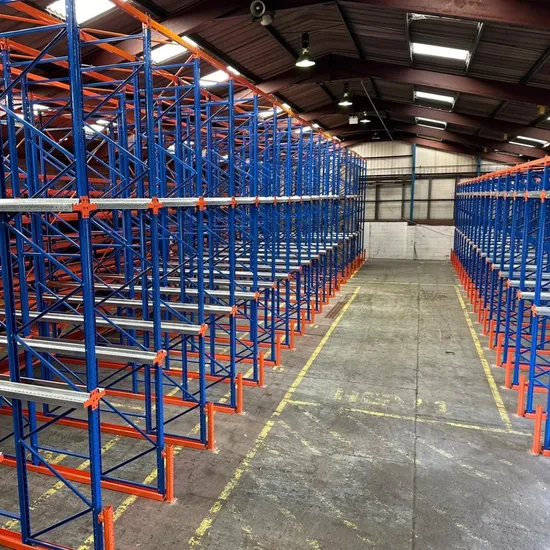

Welfor drive in rack is suitable for storing goods of few varieties by great quantity. Fork lifer may go into the passage of each row of the rack improving the utility ratio of warehouse.
Using minimal space for access aisles and lanes, Drive-in Racking provides a high-density and very space-efficient bulk storage system. With the first pallet into a lane being the last out, stock selectivity is restricted, but when loads are delivered and dispatched in batches, this is not a difficulty. Pallets are stored on joist in the depth of the racking and trucks enter to deposit or retrieve loads.
Features Made of continuous rows of upright frames interconnected by spacers Forklift trucks drive along each aisle (lane) to store or retrieve pallets Each aisle consists of several levels of pallet support rail Pallets are placed on the pallet support rail one after another along the aisles Top and back bracings are used to stabilize system structure All components are epoxy powder coated except the galvanized footplates Accessories include shim, upright protector, forklift guide rail
Technicial data for drive in rack

Products	Heavy Duty Pallet Rack	Medium/Light Duty Rack
Loading Capacity	1000-5000KG/layer	100-1000KG/layer
Specification	Main Racking: L2000*D1200*H4800mm*4layers (Designed by different demands) Beam:L1800~5000mm Pallet rail: 1.5~2.5mm Customized sizes and colors are welcomed	Main Racking: L1500*D1200*H3000mm*4layers (Designed by different demands) Beam: L1200~2500mm Pallet rail: 1.0~2.0mm Layers: steel panel/net or wood veneer Customized sizes and colors are welcomed

Production process
Packing and loading photos
Please provide information for quick quotation
1. Pallet Size (Length*Width*Loading Height in mm)
2. Layout or Dimension (Length*Width*Net Height in mm) of your warehouse
3. Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you
4. How many bays and levels if available
5. Loading Capacity(kg) of each level or each pallet
FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.
3, What is payments methods you can accept?
++ T/T and L/C are welcomed.
4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
