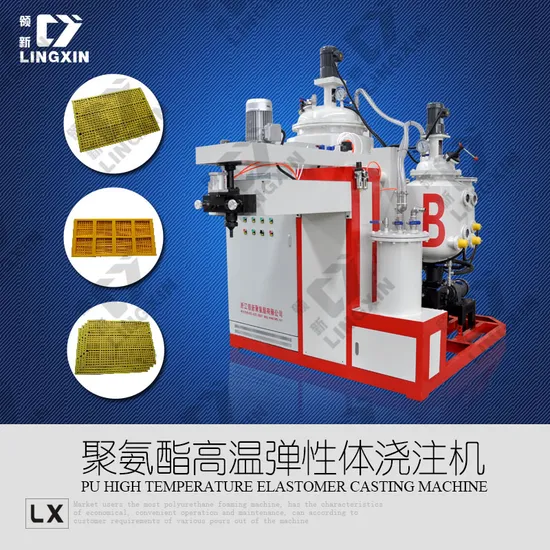

China Lingxin Brand PU Elastomer Casting Machine /Polyurethane Elastomer Casting Machine /CPU Casting Machine

Product Description

Equipment Application:
PU elastomer casting machine is fit for making sealing element, wheel, roller, sieve, impeller, OA machine, skating wheel, buffer, and other kinds of CPU products.

Equipment Features:
High temperature resistant low speed high precision metering pump, accurate measurement, random error within±0.5%;
Material output adjusted by frequency converter with motor, high pressure and precision, simple and rapid ratio control;
High performance mixing device, adjustable pressure, accurate material output synchronization and even mix; New type mechanical seal structure avoids reflux problem.
High-efficiency vacuum device with special mixing head ensures product no bubbles.
Adopting electromagnetic heating to heat transfer oil, efficient and energy saving; Multi-point temp. control system ensures stable temperature, random error <±2ºC.
Adopting PLC and touch screen man-machine interface to control casting, automatic cleaning flush and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situations as well as display abnormal factors;

Technical Parameters:

Voltage	380V 50Hz
Output	100-800 g/min; 1-3.5kg/min;2-5kg/min; 3-8kg/min; 5-15kg/min;12-30kg/min etc
Material tank volume	30L-500L
Power	25-45KW
Injection Pressure	0.01-0.1Mpa
Injection time	0.5~99.99S (correct to 0.01S)
Mixing head	Around 6000rpm, forced dynamic mixing
Compressed air requirement	Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned)
Vacuum pump	2X-15 Speed of exhaust:15L/S
Input power	Three-phrase five-wire,380V 50HZ
Temperature control system	18~24KW
Color (selectable)	White/Blue/Red
Weight	2000kg

Our company:
Certificate:
Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.

---
