Stainless Steel Duct & Flexible Tube Welding Production Line

Product Description

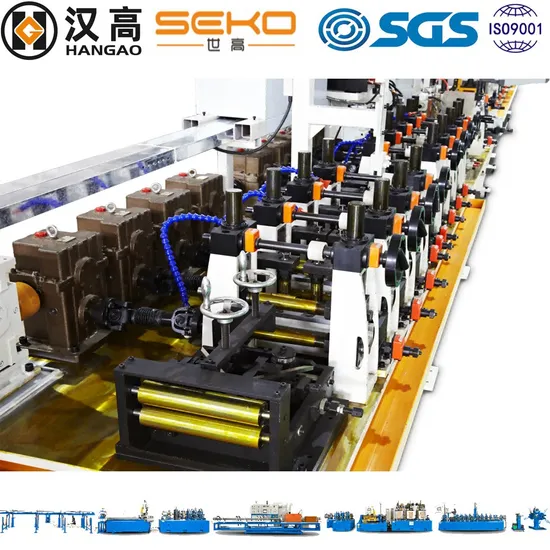

Precision Duplex Steel Pipe Making Line Duct Welding Tube Mill Machine
(Accept custom services)
Product Description

Type	Material	Welding type	O.D. (mm)	Thickness (mm)	Capacity (m/min)	Motor Power (KW)	Size(L*W*H)(m)
SZG-30	SST	TIG	6-16	0.4-1.5	adjustable	5.5	Customization supported
SZG-40	SST	TIG	16-50.8	0.5-2.5	adjustable	7.5	Customization supported
SZG-50	SST	TIG	25.4-76	0.5-3.0	adjustable	11	Customization supported
SZG-60	SST	TIG	50.8-114	1.0-4.0	adjustable	15	Customization supported
SZG-80	SST	TIG	89-168	1.0-5.0	adjustable	18.5	Customization supported
SZG-100	SST	TIG	114-219	2.0-8.0	adjustable	30	Customization supported
SZG-120	SST	TIG	168-325	3.0-10.0	adjustable	37	Customization supported

Automatic Roller Quickly Change Process
Process Flow

Uncoiler Formation into Forming & Welding
Weld cooling Weld bead roller Joint grind
First sizing Online Bright annealing furnace Final sizing
Cutting length Tube collecting rack
Features
Roller Fast Changed System
Transmission shaft connection adopts servo motor driving.
Fully automatic.
Less time on roller position calibration.
Durable turbine box reliable supllier.
Ethernet connection running status monitoring
Technician team offers remote assistance.
24H whole line running monitoring.
Entire tube mill line controled by general HMI.
Durable and Non-deformed Machine Base & Standings

Our Advantages
Advantage of Hangao Making Pipe Machine
√ Safety :insulation resistance monitoring and protection function
√ Easy installation and easy opreate
√ Energy saving & Auto
√ The flloor area is reduced by 50%;
√ Electricity consumption is saved by 80%;
√ Maintenance cost is reduced by 80%;


Application
Hangao Machinery industrial bright annealing steel coil pipe welding line specializes in industrial usage, like HVAC pipe fittings, sanitary tubes, water pipes, valve pipe fittings, petrochemical pipes, chemical industry, medicine industry, wine-making industry, petroleum industry, food industry, automobile industry, paper making industry, air-condition making industry and so on. Products dealed with our tube mill could reach ASTM, DIN, ISO, GB and JIS standard.
Company Profile
Guangdong Shunde Hangao Machinery Co., Ltd. founded in 2009. We are an industrial stainless steel welded pipe making machine manufacturer, with 20 year experience, which integrates design, research and development, manufacture, sale, after-sale service and other supporting service. By virtue of its excellent credit, high performance products and considerate service, our company has won a large group of loyal customers and is recognized by its peers and the authoritative organizations highly. Its products are exported to Dubai, Russia, India, Thailand, Pakistan, Vietnam and ect..
Hangao Partner

FAQ
1. Which countries your products are exported to?Our products are sold all over the world and with related certifications .2.How about the warranty?All our products have one year quality warranty, It will have a long life , if you follow our advice to use the machine. What's more ,during the warranty time, the spare parts replacement is free. And we provide professionally life long time technical support and other assistance .
3.How to install your machine?
First , our machines are easy to install or operate it , don't worry .
Second , we both offer you a details paper Installation Manual and the videos to teach you untill you command it .
Third , our engineers will be sent to your factory to help you to install and adjust the manchines .
4. Which export port you use?
Any China ports. Commonly, we will use Shenzhen port. But it can be appointed as you like.
5. How about the payment terms and delivery time ?· Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.· The big machines and big amount: 40% deposit, 60% before shipment · · (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T,L/C, Western Union or other ways.·The machine delivery time is within 45-90 days.
6.Is your goods with ISO9001 or CE certificate ?
Yes, all our goods has ISO certificate. All machines are high quality goods.7.What is your nature of your company:dealer or factory ?
We are manufacturer with a big factory ,warmly welcome to visit our factory and contact us.
