XCMG 12m Used Electric Scissor Aerial Workl Platform Gtjz1012 Lifting Equipment

Product Description

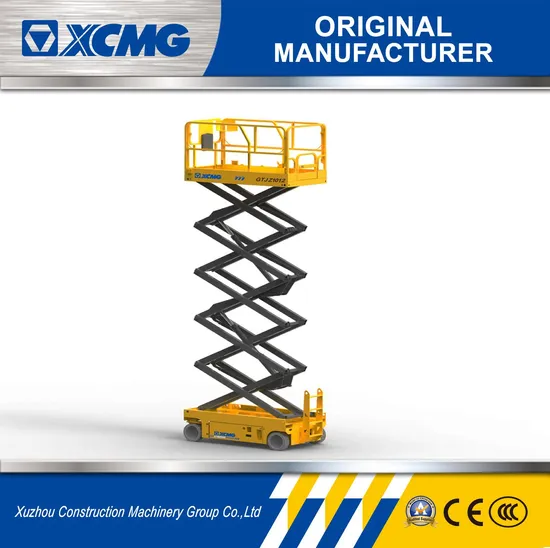

XCMG 12m used electric Scissor Aerial Workl Platform GTJZ1012.
Product Description
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Low Noise and Zero Emission
Use the energy-efficient electric driving system , with zero emission and low noise ; it's also easy for construction even in office buildings , hospitals ,schools and other closed environments .

Smooth and Safe Operation
With the industry-leading automated pothole protection system , the driving is more safe and reliable , even in rough terrain , allowing your driving as you wish .

Compact and Flexible Operation
Unique " zero turning radius " design can be applied flexibly in a narrow space .Also , 25% of gradeability may allow a easier driving operation .
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	Parameters
a Overall Length	mm	2485
b Overall Width	mm	1170
c Overall Height (Guardrail folding)	mm	1908
d Wheel Base	mm	1871
Maximum Working Height	m	12
Maximum Platform Height	m	10
Maximum Load Capacity	kg	320
Extension Platform Load	kg	115
Platform Size	mm	2276×1120×1254
Platform Extension Length	mm	900
Lifting Speed of Working Platform	s	56-66
Falling Speed of Working Platform	s	43-58
Total Weight	kg	3000
Travel Speed (High Speed)	km/h	3.5
Travel Speed (low Speed)	km/h	0.8
Max. Travel Platform Height	m	10
Minimum Turning Radius	m	0
Minimum Ground Clearance (Pot Hole Protector Rises/Falls)	mm	101/20
Maximum Grade Ability	%	25
Tire Specification	_	Traceless solid 38.1cm×12.7cm
Battery	V/(Ah)	4×6(240)
Charger	A	30
Warning Angle of Inclination	°	1.5 (Both sides)
	°	3(Front or rear)
