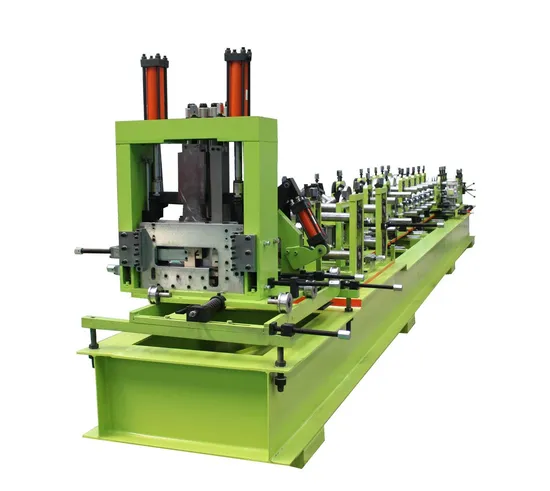

Automatic Cu Purlin CZ Purlin Interchange Profile Roll Forming Machine
US$38,000.00-45,000.00
1 SET
(MOQ)
Basic Info.
Model NO.
FMS-CU purlin
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Color
as Per Customized
Thickness
1.0mm - 2.0mm
Width
as Per Drawing
Control System
PLC Brand Is Delta From Taiwan
Transport Package
Naked with Plastic Film
Specification
9000mm*2000mm*1450mm
Trademark
FMS
Origin
China
HS Code
84552210
Packaging & Delivery
Package Size
640.00cm * 120.00cm * 130.00cm
Package Gross Weight
4000.000kg
Product Description
9. Suitable material to process
Material: galvanized steel strip, galvalume steel strip;
Thickness: 1.0mm - 2.0mm;
Width: as per drawing.
10. Technique parameters of the main roll forming machine
(1). Forming stations: 21;
(2). Roller material: GCr15 steel with CNC machining;
(3). Diameter of shaft: ยข80mm solid forged 45 #steel, quenching process;
(4). Material of shaft: solid 45# steel with grinding process;
(5). Frame of the machine: welded with 350H section steel;
(6). Wall panel thickness: 20mm;
(7). Forming motor power: 30KW;
(8). Flying saw cutting;
(9). Control system: PLC brand is DELTA from Taiwan;
(10). Material leveling device;
(11). Driving mode: double 2" chains;
(12). Forming speed: 0-10m/min;
(13). Power supply: 380V, 50HZ, 3 PHASES;
(14). 80T punch with one set die and serve feeding
11. The Chart of Process Flow
Manual Decoiler ---Leveling & Feeding Device --- Punch --- Main Roll Forming System ---
PLC Control System --- Hydraulic Station System --- Cutting System --- Receiving Table
>>
