Light Poles Press Brake Bending Machine Tandem Working

Product Description

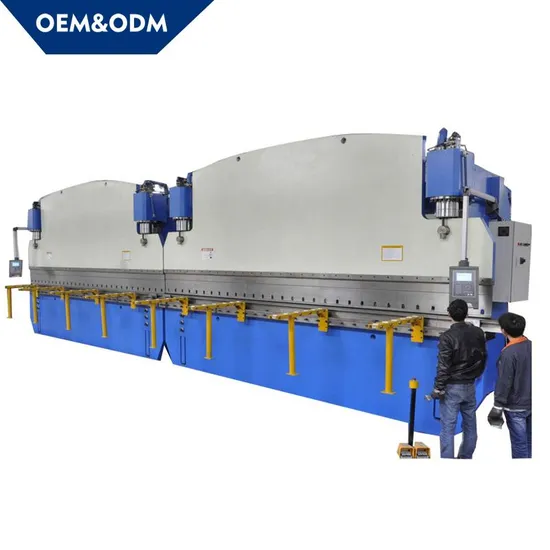

light poles press brake bending machine tandem working
Product Introduction: 1.This machine adopts the double linkage structure, which can bend the special workpieces, such as gutters,
lamp posts and so on.
2.This machine is designed in European style with streamlined looking monoblock.
3.VASIA press brake incorporating with Holland DELEM DA53,DA58,DA66,CYBELEC CT8/CT12 control systems .
which offers not only failsafe operation of the vital operations,
but also provides the operator considerable assistance in carrying out the entire blending process.
4.This machine has both steel torsion bar synchronized structure and electro-hydraulic synchronized structure ,
which can guarantee the high precision and fast working efficiency .
5.Adopting the integrated hydraulic control system, such as TC brand or Rexroth brand ,
its working is more reliable and easy access to maintenance.
6.All the main parts of the machine are from well-known companies: the hydraulic system can use Bosch- Rexroth of Germany;
all seals in cylinder are Valqua from Japan.
The electrical equipments adopted Siemens from Germany or from France,
all of which are the world famous brands with good quality and high performance.
7.This machine has the protective fence and safety interlock to ensure the operator's safety.
8.Having a movable single-hand pedal switch makes it easy to operate, DSP laser protection as option for different clients .
Beveld cutting:
This machine is suitable for cutting and processing of various plates, especially the long plates,
which owns convenient operation , arbitrary adjusting, and high productivity.
The plate to be cut is pressed on the walking device through the hydraulic cylinders.
Under the rotary shearing of the circle blades, the plate runs with the walking device and do cutting at the same time.
When pressing, the plates can be put in inclined for taper cutting.
Therefore, this machine is widely used in light poles, containers, metal structures, ships, daily hardware,
construction and other industries.
Poles welding:
This machine is suitable for cutting and processing of various plates, especially the long plates,
which owns convenient operation , arbitrary adjusting, and high productivity.
The plate to be cut is pressed on the walking device through the hydraulic cylinders.
Under the rotary shearing of the circle blades, the plate runs with the walking device and do cutting at the same time.
When pressing, the plates can be put in inclined for taper cutting.
Therefore, this machine is widely used in light poles, containers, metal structures, ships, daily hardware,
construction and other industries.
Poles straightening:
This equipment is simple and compact in structure, convenient and reliable.
In the specific operation, the steel rod can be manually placed on the pressing die,
and worker can press the buttons on control panel for working .
The straightness of the steel rod can be reached by manual visual inspection, with high efficiency.
Main Technical Parameter:

No	Model	Pressure (KN)	Max bending width(mm)	Distance between Columns (mm)	Throat depth (mm)	Ram stroke (mm)	Max open height(mm)	Motor (kw)
1	2-WE67K-300TX6000	6000	12000	5130	710	200	950	2X37
2	2-WE67K-400TX6000	8000	12000	5140	710	250	950	2X37
3	2-WE67K-500TX6000	10000	12000	5150	900	300	1100	2X45
4	2-WE67K-600TX6000	12800	12000	4000	1100	300	1200	2X55
5	2-WE67K-800TX6000	16000	12000	4000	1100	400	1200	4X37
6	2-WE67K-800TX7000	16000	14000	5030	1100	400	1200	4X37
7	2-WE67K-800TX8000	16000	16000	5030	1100	400	1200	4X37
8	2-WE67K1200TX7000	24000	14000	4500	1600	400	1250	4X45
9	2-WE67K-1200TX7500	24000	15000	5000	1600	400	1250	4X45
10	2-WE67K-1200TX8000	24000	16000	5030	1600	400	1250	4X45
11	2-WE67K-1600TX8000	32000	16000	5210	1600	400	1250	4X55
12	2-WE67K-2000TX8000	40000	16000	5210	1600	400	1250	4X55

---
