| US$305.00-505.00 | 1 Piece (MOQ) |

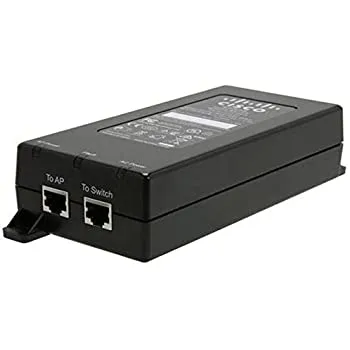

| 1 | AP Connector Port (Data + Power Out) | 3 | Status LED1 |
| 2 | Switch Connector Port (Data In) | 4 | C13 Power Connector |
| Specification | AIR-PWRINJ6= |
| Dimensions (W, H, L) | Model 1: 53 mm x 32.5 mm x 140 mm 2.09 in x 1.28 in x 5.5 in Model 2: 65 mm x 36 mm x 140 mm 2.55 in x 1.42 in x 5.51 in |
| Data Rates | 10/100/100 Mbps |
| PoE Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (-) Output Power Voltage: 55V DC |
| User Port Power | 30 Watts |
| Input Power Requirements | AC Input Voltage: 100 to 240V AC AC Input Current: 0.67 A @ 100 - 240 V AC AC Frequency: 50 to 60 Hz |
| Weight | Model 1: 0.44 lbs (200 g) Model 2: 0.47 lbs (215 g) |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Environmental Conditions | Operating Ambient Temperature: -4ºF to 104ºF (-20ºC to 40ºC) at 30 W -4ºF to 122ºF (-20ºC to 50ºC) at 25 W Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC) |
| Reliability | MTBF: 100,000 hrs @ 25ºC |
| Thermal Rating | 20 BTU/Hr @ 240 V AC |
| Regulatory Compliance | IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant |
| Electromagnetic Emission and Immunity | FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI |
| Safety | UL 60950-1 IEC/EN 60950-1 |
| Stacking restrictions | Do not stack. Do not bundle the power injector and AC power cable. |
| Packaging DetailsOrigial Box Packing |
