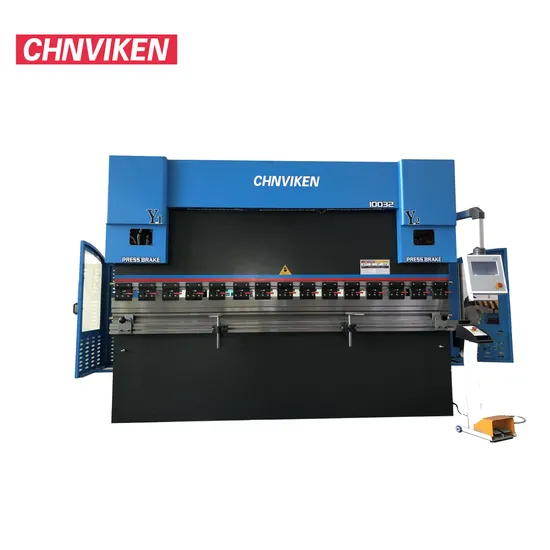

Viken Wc67K Inexpensive CNC Bending Machine, Stable Quality of The Press Brake with Tp10s System

US$10,000.00
1-3 Pieces
US$8,000.00
4+ Pieces

Basic Info.

Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Type
Press Brake
Machine Type
Torsion Bar
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
Weight (Kg)
7500
Applicable Industries
Building Material Shops, Machinery Repair Shops, M
Showroom Location
Egypt, Canada, UAE, Australia, None
Raw Material
Sheet Metal & Steel Plate
Material / Metal Processed
Stainless Steel, Alloy, Carbon Steel, Aluminum, Mi
Power
Hydraulic
Model:We67K-100t/3200
Bending Pressure:1000kN
Max Bending Width:3200mm
Motor Power (Kw):7.5
Max Opening Height:380mm
Slider Stroke:120mm
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Transport Package
Plywood Box
Trademark
CHIVIKEN
Origin
Anhui, China

Product Description

Viken company is a professional enterprise of sheet metal processing equipment such as CNC press brake, fiber laser cutting machine, panel bender, laser welding machine, hydraulic shearing machine, punching machine and machine dies & blade.
Our factory has advanced production equipment and a professional production team, which can customize various types and sizes of equipment according to the different needs of customers. They focus on quality control and product performance optimization to ensure that each piece of equipment can meet customer requirements. In order to maximize customer satisfaction, we provide free 7*24 online after-sales service, and conditional on-site service.
Bending Capability 80/3200 100/3200 100/4000 125/3200 125/4000 160/3200 160/4000
Nominal Force(KN) 800 1000 1000 1250 1250 1600 1600
Worktable Length(mm) 3200 3200 4000 3200 4000 3200 4000
Column Distance(mm) 2650 2610 3100 2610 3100 2600 3050
Throat Depth(mm) 250 320 320 320 320 320 320
Ram Stroke(mm) 120 120 120 120 120 180 180
Main Motor Power(KW) 5.5 7.5 7.5 7.5 7.5 11 11

No. Component Name Details
1 Controller TP10S
2 Main Motor Siemens Main Motor
3 Hydraulic system RexRoth, Germany
4 Oil pump Sunny, America
5 Electrical components Schneider, France
6 Servo motor and driver Estun, China Nanjing
7 Ball screw linear guide rail HIWIN, China Taiwan
8 Hydro-cylinder VIKEN
9 Bear NSK, China Shanghai
10 Punch and Die 42CrMo Material
