[Working power supply] AC220V ± 20, 50Hz ± 5%, with two sets of DC power outputs of 5V and 24V |
[Working environment] Temperature: 0-50 ºC; Humidity: 10~85% RH (no condensation); No strong magnetic field; No strong vibration |
[Input signal] Current (4-20mA or 0-20mA); Voltage (1-5V or 0-5V) |
Output capability :Drive thyristor (trigger pulse 4V/200mA, 0.1mS) |
Installation method: Standard 35mm DIN rail installation |
|

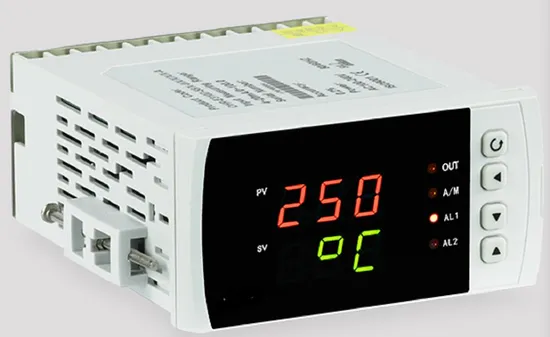

The E400 series 60 stage artificial intelligence temperature controller adopts true artificial intelligence formulas, and the instrument has a self-tuning function. It can automatically search for parameters based on the characteristics of the controlled object to achieve good control effects, without the need for manual parameter tuning. The temperature control accuracy is basically ± 0.1 ºC, with no overshoot or undershoot, reaching the international advanced level.
