Skymard Famous Brand Truck Mixer Sy206c-8y (V) 6cbm Concrete Machine for Sale

Product Description

Product Description

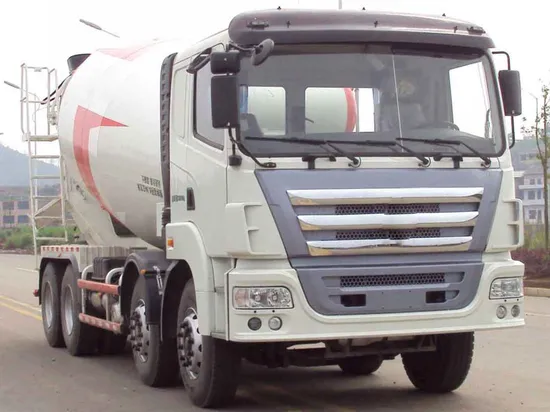

SY206C-8Y(V) Truck Mixer
Specialized Cab
· Safe and secure
· Built for the driver
· Convenient ACCESS maintenance
· Attractive styling
· Panoramic monitoring (optional)
Improved Braking
· By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear is decreased by 50%. It uses a high-volume air compressor, high quality piping, and new sealing technology that shortens air build up time and brake response time.
Energy-saving Technology
· The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
· The frame is made of high-strength special steel plates, improving reliability and safety. It uses original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edge Steering Technology
· The large displacement power steering pump reduces operator effort by 40%. Optimized chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
· The three-section blade provides an efficient discharge angle.
· The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
· Each truck is equipped with a GPS system, which features five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep good management of the mixer truck's location, maintenance items, discharge, etc.
Maintenance Tips
· Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling. Product Parameters

Item	SY206C-8Y(V)
Rudder direction	Left
Curb weight	8000kg
Full load weight	22400kg
Wheel base	4200mm
Min. ground clearance	≥ 225mm
Min. turning diameter	≤ 16m
Fuel consumption	≤ 28L/100km
Displacement	4.73L
Rated power/Rev speed	147/2500kW/rpm
Max. torque/Rev speed	735/1300-1500N.m/rpm
Emission standard	Euro V
Fuel tank	170L
Mixing capacity	6m³
Feeding speed	≥ 3m³ /min
Discharge speed	≥ 2m³ /min
Discharge residual rate	≤ 0.5%
Water tank capacity	300L
Dimension (L×W×H)	7800×2480×3605mm

Detailed Photos
Packaging & Shipping

---
