Metal Tube Laser Cutting Machine Universal Thin-Walled Pipes Angle Channel Steel Cutter

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of Double-chuck Universal Tube Laser Cutting Machine:

HI-TECH ENTERPRISE IN CHINA HSGLaser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with intelligent metal forming solutions. Serve 100+ Countries and Regions HSG Laser has built 4 standardized manufacturing bases in China, 10 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 221+ R&D personnel
and can produce 5000 sets each year by right of 80000m2 production area. Professional R&D Team Our R&D team values high-power machines and key spare parts. Until now, they have developed industry-leading
3D fifive-axis bevel cutting, P30 ultra-high-power autofocus cutting head, four intelligent digital chucks, Alpha T
and HSG-X9000 bus system and HSG-XMT multi-touch operating system.
Large Variety in Fiber Laser MachinesHSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to
be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser
cutting machine, bending machine, welding machine and automation equipment.

Product Description

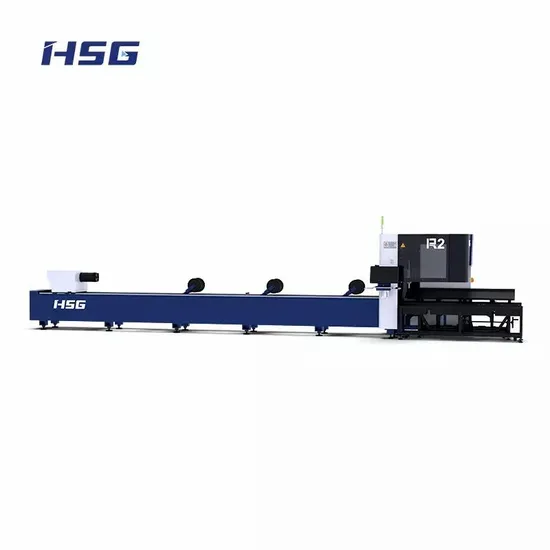

Double-chuck Universal Tube Laser Cutting Machine 1500-6000W
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory.
* All testing results and experimental data shall be subject to real machine.

Basic Information
< Precise Cutting with Pneumatic Support >

* Three pneumatic concave wheel supports are the standard equipment of R2 series, satisfying your support demands for most tube types.
* R2 series can be equipped with servo follow-up support optionally for higher precision.

< Standard Configuration of Rectangular-circle Chucks,
Supporting Various Tubes >
Equipped with simple rectangular-circle chucks, R2 series can achieve the weight capacity of 300Kg, supporting various types of tubes.
Round Tube:φ8-φ240
Square Tube: 8-240
Angle Steel 15# Channel Steel 14#
(Note: R2 series can be equipped with professional rectangular-circle chucks for stronger sealing and protection abilities)
< Fabulous Dynamics Assist in Higher Productivity >
The chuck operating speed of R2 series can achieve 120m/min and the chuck rotation speed can achieve 100r/min with 1.0G acceleration, which play an important role in productivity improvement.

< HSG-X Bus Control System >

HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
< More Stable and Precise for Blanking Rack (Optional) >
R2 series can be added with 3m blanking rack, for more stable and precise cutting of long tube cutting especially.

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	R2
Power	1500-6000W
X/Y-axis Positioning Accuracy	±0.05mm/m
Cutting Capacity of Round Tube	8-240mm
Cutting Capacity of Square Tube	8*8-240*240mm
Weight of Single Tube	300kg
* The price of machine with different power is also different. Please contact the customer service staff for consultation.

Sample Display


Certifications


Visit & Exhibition

Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE


Δ One-year Warranty

All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.

Δ Exclusions

Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the warranty.

---
