Inconel 625 718 601 600 800 Monel 400 Uns N05500 Nickel Copper Monel Strong Corrosion Resistant Nickel Alloy K-500 Tube

Product Description

Product Description

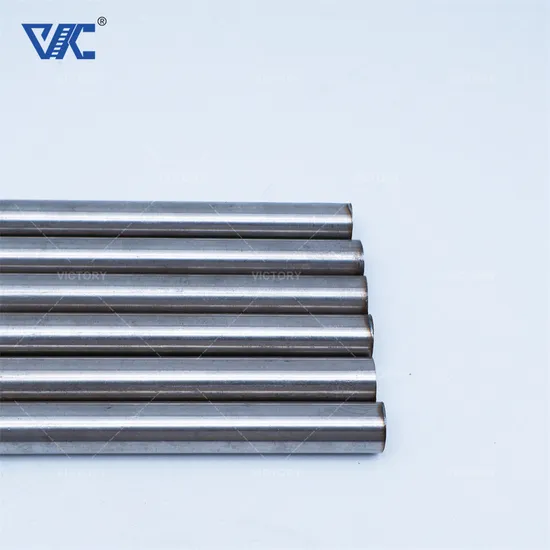

Metal Super Nickel Alloy Monel 400 Round Bar Price Per Kg Monel 400 is a nickel-copper alloy (about 67% Ni - 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked and ammonia systems. Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.
Features:
* Resistant to seawater and steam at high temperatures
* Excellent resistance to rapidly flowing brackish water or seawater
* Excellent resistance to stress corrosion cracking in most freshwaters
* Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
* Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids
* Excellent resistance to neutral and alkaline salt
* Resistance to chloride induced stress corrosion cracking
* Good mechanical properties from sub-zero temperatures up to 1020° F
* High resistance to alkalis
Applications:
* Valves, pumps, shafts, fittings, and fasteners
* Industrial heat exchangers
* Chlorinated solvents
* Crude oil distillation towers
* Marine engineering
* Chemical and hydrocarbon processing equipment
* Gasoline and freshwater tanks
* Crude petroleum stills
* De-aerating heaters
* Boiler feed water heaters and other heat exchangers
Detailed Photos
Product Parameters

Item	Ni%	Cu%	Fe%	Mn%	C%	Si%	S%
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Density	Melting Point	Tensile Strength	Yield Strength	Elongation	HB
			(Rm N/mm2)	(RP0.2N/mmx)	(A5%)
Monel 400	8.83 g/cm3	1300-1390ºC	480	170	35%	≥331

Moenl 400	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Item	Ni%	Cu%	Al%	Ti%	Fe%	Mn%	S%	C%	SI%
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Item	Density	Melting Point	Tensile Strength	Yield Strength	Elongation
			(Rm N/mm2)	(RP0.2N/mmx)	(A5%)
Monel K500	8.05 g/cm3	1343ºC	1100	790	20%

Moenl K500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B865	AMS4676	ASTM B865	ASTM B564	ErNiCu-7
