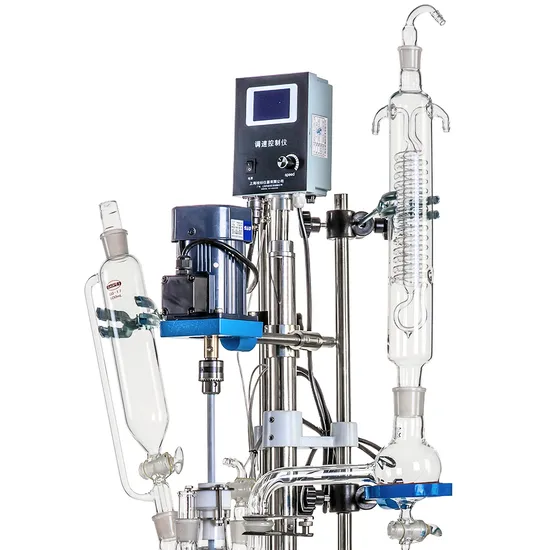

Glass Reactor with PLC 5 Liter Glass Reactor Glass Inner Bio Reactor

Product Description

Model		GR-5L
Volume(L)		5
Jacket volume(L)		2
Condensation area(m²)		0.3
Feeding tank volume(L)		0.5L
Recovery tank volume(L)		3
Kettle cover diameter	Impeller diameter	50# flangetype
	Temperature sensor diameter	40# flangetype
	Condenser connection	50# spherical grinding
	Liquid feed inlet	34# standard grinding×1
	Feeding tank interface	40# standard grinding
	Solid feed inlet	/
Glass assembly		High borosilicate glass 3.3
Main frame		SUS304
Stirring paddle		Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium
Motor		For viscous materials, high-power motors can be used
Move method		Lockable casters
Working temperature(ºC)		-120ºC~300ºC
Maximum temperature difference(ºC)		≤60
Pressure in kettle(MPa)		-0.1~0.1
Jacket pressure resistance(MPa)		≤0.1
Pressure rise rate of vacuum system		≤2kPa/h
Mixing motor power(W)		Common 200W/ explosion proof 370W
Speed regulation mode		Frequency control
Speed adjustment range(rpm)		0~600
Temperature sensor		PT100
Temperature display accuracy(ºC)		±0.1
Temperature range		Water: RT~90ºC
		Oil: RT~300ºC
Interface size of stainless steel insulation hose		½in external screw thread
Seal material		PTFE
Installation height of discharge valve(mm)		205
Power		220V/110V,50/60Hz
Environment temperature(ºC)		5~35
Relative humidity(%)		≤ 65
Size(mm)		520W×500D×1510H
Weight(kg)		60

FAQ: Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

---
