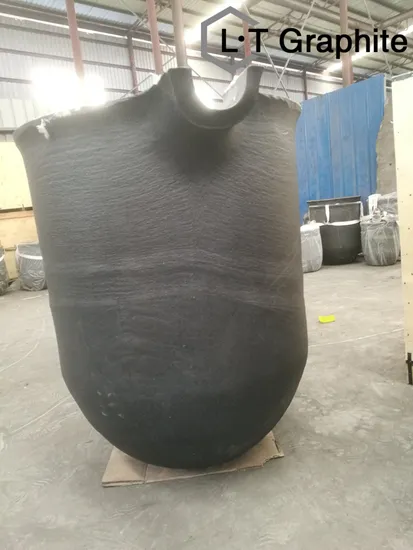

Large Melt Capacity Silicon Carbide Graphite Crucible with Dumping Slot

Product Description

Product Description
Isostatically pressed silicon carbide graphite crucible is a scientific mixture of silicon carbide and natural graphite powder, made by isostatic pressing and sintering. It combines the high temperature resistance of graphite crucible with its anti-oxidation and corrosion resistance, effectively reducing production costs. Excellent performance below 1700ºC
Isostatic SiC Graphite Crucible is suitable for conventional furnaces such as resistance furnaces, induction furnaces, and flame furnaces, and can be used for smelting various non-ferrous metals such as gold, silver, copper, aluminum, zinc, and lead. It is particularly outstanding in smelting copper and aluminum. Our crucible formula is specially designed for melting copper and aluminum, which significantly prolongs the service life of the crucible.
Product Parameters
Models and Sizes
L.T Graphite have 4 kinds SIC graphite crucibles, with dumping slot:
1) D380*H660*S150mm weight 65kg, can melt 90KG Aluminum, 270KG Copper.
2) D540*H600*S150mm weight 150kg, can melt 200KG Aluminum, 600KG Copper.
3) D780*H900*S150mm weight 300kg, can melt 600KG Aluminum, 1800KG Copper.
4) D900*H1150*S150mm weight 480kg, can melt 1000KG Aluminum, 3000KG Copper.
Our Advantages
L.T provided SIC graphite crucible, long service life guarantee:
Aluminum: ontinuously for 6 months,
Bronze/Copper: 80-100 cycles for 2-3 months
Crucible Lifting Fixture
L.T provides one-stop smelting solutions according to your needs: crucible lifting fixtures, insulation cotton, refractory bricks, flux etc.

---
