Basic Info.
Model NO.
MW61-200180L/1-75
Shape
Round or Oval or Rectangular
Color
Red, Orange or Others
Magnetic Source
Electromagnetic
Cold-State Power
41.2/23.8kw
Lifting Capacity for Cast Iron
2300/1900kg
Lifting Capacity for Steel Scrap
1100/900kg
Lifting Magnet Application
Lifting Steel Scraps in Box-Shaped Cart
Transport Package
Standard Export Package
Specification
ISO9001: 2008
Trademark
SHENGANG MAGNET
Production Capacity
80 Sets Per Month
Product Description
Product Description

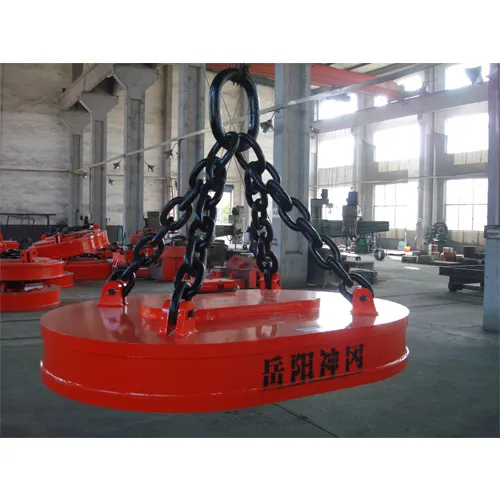

Oval Shape Magnetic lifter is suitable for lifting steel scraps in box-shaped cart.
Features:
1.Oval shape is suitable for using in Carriage shape,efficiently handle scraps.
2.With deep magnetic field and strong magnetic force,it can handle substantial scraps at a time.
Product Parameters
Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) |
cast iron | steel scrap | A | B | C | D | E | F |
MW61-180160L/1-75 | 113/78 | 32.7/15.5 | 2550/2000 | 1150/900 | 5000 | 1800 | 1600 | 1500 | 310 | 210 | 60 |
MW61-200150L/1-75 | 110/76 | 31.9/15.2 | 2200/1900 | 1000/800 | 4200 | 2000 | 1500 | 1300 | 250 | 180 | 70 |
MW61-200180L/1-75 | 142/108 | 41.2/23.8 | 2300/1900 | 1100/900 | 4500 | 2000 | 1800 | 1400 | 400 | 240 | 70 |
MW61-250150L/1-75 | 198/150 | 57.4/33 | 4000/3000 | 2000/1600 | 5000 | 2500 | 1500 | 1700 | 300 | 210 | 60 |
MW61-250180L/1-75 | 238/181 | 69.02/39.82 | 4500/3000 | 2200/1600 | 9000 | 2500 | 1800 | 1700 | 180 | 110 | 55 |
MW61-250200L/1-75 | 179/123 | 51.9/24.5 | 5000/4200 | 2500/1800 | 8400 | 2500 | 2000 | 2000 | 390 | 280 | 80 |
MW61-300150L/1-75 | 195/135 | 56.6/27 | 2400/2850 | 1500/1250 | 5700 | 3000 | 1500 | 1570 | 310 | 210 | 60 |
MW61-300180L/1-75 | 198.6/150 | 57.6/33 | 3500/2850 | 1600/1300 | 7500 | 3000 | 1800 | 1570 | 400 | 250 | 80 |
MW61-300200L/1-75 | 207/157.1 | 60/34.5 | 4000/3500 | 2500/2000 | 10500 | 3000 | 2000 | 1800 | 400 | 250 | 80 |
MW61-350220L/1-75 | 254.4/193 | 73.8/42.5 | 7000/6000 | 3500/3000 | 12000 | 3500 | 2200 | 1955 | 400 | 300 | 80 |
MW61-360180L/1-75 | 240/180 | 69.6/39.6 | 5000/3500 | 2500/2000 | 11000 | 3600 | 1800 | 1955 | 400 | 250 | 80 |
MW61-400150L/1-75 | 182/138 | 52.8/30.4 | 4000/3500 | 2500/2000 | 8500 | 4000 | 1500 | 2350 | 410 | 260 | 80 |
Complete set of Equipment:
· Magnetic Lifter
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
5.Do you need full set with cable reel, control cabinet or only magnet?
6.Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly. )
Application
Company Profile
Certifications
FAQ
1. Why customers choose us?
We are a professional lifting magnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
Our payment is 30% T/T deposit,70% balance before factory delivery.
3.How long is your delivery time?
A:Standard model is within 10 workdays after deposit confirmed.
Customerized model will depend on actual production needs.
4.What is the total cost of freight?
Please provide your port of destination in order to give accurate freight.
5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
>>
