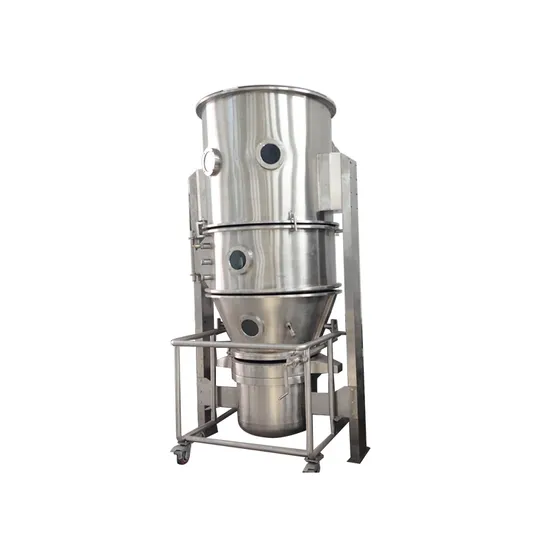

Tianhe FL-30 Series Top Spray Fluid Bed Granulator Dryer for Vitamin

Product Description

Product Description
FL Series Fluidized Granulator machine Principle
The powder grannle in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with chen and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules. FL Series Fluidized Granulator machine Features:
1.Because of powder Granulation, the fluidity is improved and the dust is reduced;
2.Because of powder Granulation , its solving property is improved ;
3.The mixing, Granulation and drying can be completed in one step inside the machine;
4.The operation of equipment is safe because the anti static filtering cloth is adapted;

5.The operating personnel can not be damaged if explosion take place because there is releasing hole;
6.The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean.

It can meet therequirements of GMP.

Model	FL-3	FL-5	FL-15
Production capacity	1.5-3kg/batch	3-5kg/batch	10-15kg/batch
Heating power	6kw	9kw	12kw
Compressed air consumption	0.8m3/h	0.8m3/h	1m3/h
Compressed air pressure	0.4-0.6 MPa	0.4-0.6 MPa	0.4-0.6 MPa
Temperature	50-120C	50-120C	50-120C
Fan power	3kw	4kw	5.5kw
Overall size	3*0.85*2.5 m	3*0.95*2.5 m	3.6*1*2.8 m

Model	FL-30	FL-60	FL-120
Production capacity	15-25kg/batch	30-50kg/batch	60-100kg/batch
Heating power	18kw	45kw	54kw
Compressed air consumption	1m3/h	1m3/h	1.1m3/h
Compressed air pressure	0.4-0.6 MPa	0.4-0.6 MPa	0.4-0.6 MPa
Temperature	50-120C	50-120C	50-120C
Fan power	7.5kw	11kw	18.5kw
Overall size	3.8*1.1*2.8 m	4.2*1.4*3.2 m	5*1.7*3.3 m

Packaging & Shipping

Company Profile
Shanghai Tianhe Machinery Equipment Company (SHTH) is a reliable manufacturer, specialized in making machines and turn key project of tablets and capsules production for pharmaceutical, food and chemical processing industries.
SHTH starts from year 2011 in Shanghai, after more than ten years contentious development and accumulations, we now expand our professional R & D center, three production and processing bases, and extend more skilled workers and salesman. We acquire advantages all aspects to keep our machines in the leading position, and we take fully advantage of the internet conveniences to provide our customers top ranking after sales services .
We make tablet press, mixer, capsule filling, soft capsule maker, blister packing and stick packing machines, counter, grinder, coating machine,tablet and capsule polishing machine, as well as herb pill making machine, vacuum feeder, vacuum collector.
Above mentioned machines are strictly follow GMP standard and acquired CE certificates. Our patented models are especially popular in both domestic and overseas markets, as they always be most practical and easier to use type. Clients love to buy from us also because of our fast shipment, you can always get the package safe and easy.
SHTH provide not only nice machines, but also practical and specific solutions that aiming to boost our end users' business.
In short, with us your money is safe, and your business is growing. We appreciate the chances to work with you!




Our factory

Certifications

FAQ
1. How long is the machine warranty?
The whole machine has a one-year warranty and lifetime maintenance and aftersales services.
2. Is there a instructional video?
We provide insturction videos and we also support online video call instruction 7/24 service.
3 What shipping service do you offer?
We support fast and safe delivery services by DHL, Fedex, UPS, SF express
We also have DDP services to almost all the countries.
4. Do you support samples making before placing order?
We Support samples making, as long as you can manage sample materials to us, we try on our machine
and take videos or we support online video call for the sample making process.
5. Do you support OEM or ODM?
Yes, we are facotry, and we have a strong RD team , we support customization for machines, and we make
blueprint specific practical for your program.

---
