Overhead Line Bundle Aluminum Single Stringing Block Conductor Pulleys

Product Description

Overhead Line Bundle Aluminum Single Stringing Block Conductor Pulleys
Product Description

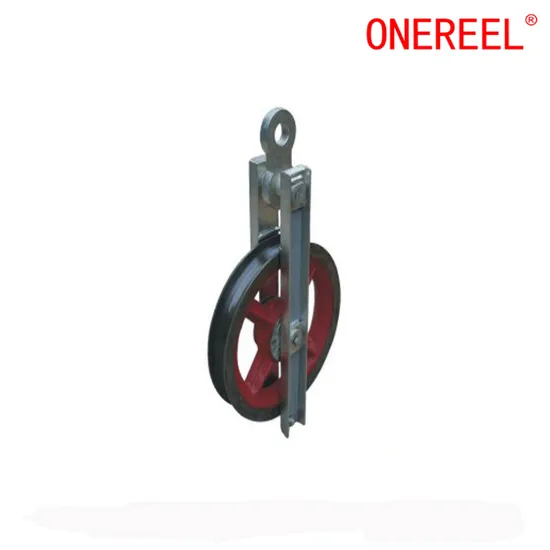

Cable sheave with hook, cable block and tackle with hook
Uses: Apply to steel wire rope traction and turning. It can pass through steel wire rope connector. The maximum allowable speed of hauling rope is 80m/min.
galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.
Specification: Hanger includes hook type, plate type and ring type. This is need indicated when customer place order. Special size can be customized.

Description of Cable pulley :
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of

Product Parameters

Product Data

Item No.	Model No.	Rated Load (KN)	Sheave Diameter (mm)	Sheave Width (mm)	Weight (kg)	Remark
0441	THZI-5	50	Ф308	75	22	Steel Wheel
0442	THZI-16	160	Ф600	92	115	Steel Wheel
0443	THZI-30	300	Ф916	110	200	Steel Wheel

ONEREEL is specialized in the design and manufacture Steel Spools, Plastic Spools, Cable roller, Yarn Bobbin, aluminum spool , Cable Reel Stand, Sheave Pulley, Cable Conveyor, Hydraulic Puller Tensioner, Gin Poles, Cable Pulling Winch, Safety Tools, Wire Grip, Plastic Parts, and Pump in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
ONEREEL is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels. With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions.

Hot Product
Our Customer


Packaging & Shipping

Packaging & Transportation

Certifications

Authoritative Certificate

FAQ

FAQ
Q1: Can I get samples?
A: According to spool model and material, we will advise.
Q2: How long is the sample LEAD TIME?
A: For existing samples, it takes 2-3 days. If no stock, we will advise lead time.
Q3: Can you develop new products?
A: Yes, we have new products developing ability and we are good at developing new mold.
Q4: How much is the freight charge?
A: It depends on spool package volume, if small quantity, volume and urgent goods,
we may advise FEDEX or other couriers' charge for your check.
If volume bigger and by seaway suitable, we provide FOB or CIF price to you.
Q5: What format of the file do you need if I want my own design?
A: We have our own mound workshop and can provide spool or other plastic product developing and injection service.
Q6: How about your service?A: We have pre-sale service, in-sale service and after-sale service. As "Customer First" is the most important principle of company operation.

---
