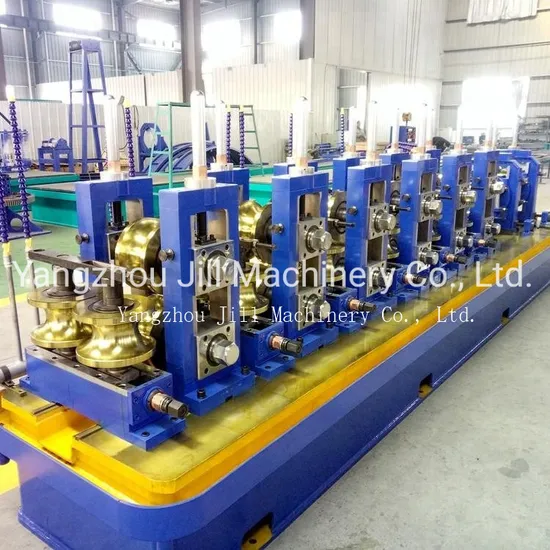

Hg 50 Carbon Steel High Frequency ERW Tube Mill Line for Welding Square Round Rectangle Pipes

Product Description

Hg50 Carbon Steel High Frequency ERW Tube Mill Line for Welding Square Round Rectangle Pipes

ALL Size Parameter details

Model	Diameter of welded pipe(mm)	Wall thickness of welded pipe(mm)	Speed of machine(m/min)	Power of main motor(k/w)	High-frequency power(kw)
HG16	8-25	0.25-1.0	30-100	30	60
HG25	8-32	0.35-1.3	30-100	45	100
HG32	13-50.8	0.5-2.0	30-90	110	150
HG50	20-63.5	0.6-2.5	30-90	160	200
HG60	25-63.5	0.8-3.0	20-80	185	250
HG76	25-80	1.2-4.0	20-70	200	300
HG90	32-90	1.5-4.5	20-60	110*2	400
HG115	38-115	2.0-5.0	20-60	160*2	400
HG165	80-165	2.0-6.0	15-50	200*2	500
HG219	90-219	3.0-8.0	15-50	250*2	600
HG273	165-355	4.0-10.0	15-40	250*1 /185*2	800
HG300	165-355	4.0-12.0	15-30	250*2/200*2	1200

Our parterners
Certificate display
Exhibition display
Packing &shipping
FAQ
01. Are you manufacturer ?
A: Yes, we are a manufacturer with 30 years experience which is located in Yangzhou city Jiangsu Province Chiina a base production place of this industry.
02. What information do you need before making quotation ?
A: Pipe material, size ,thickness that you want to produce.
03. What shall I do to start a new business in pipe ?
A: We will provide you free consultant of complete suggestions including your factory layout and workshop design ,etc.
04. What's your special between other suppilers ?
A: 1. We have more than 30 years experience in this industry, our products were exported all over the world. 2. We had ISO/CE that you can gain the highest quality and after-sales service from us with the costest price.

---
