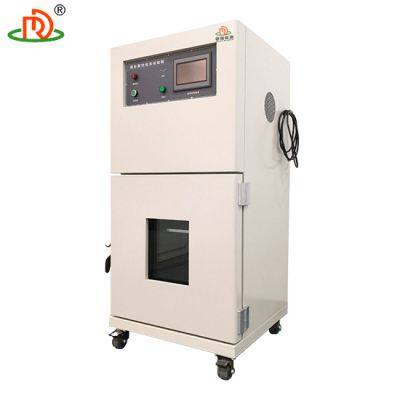

The high altitude and low pressure test chamber is used to simulate the high altitude and high altitude conditions. Under the single or simultaneous action of low pressure, high temperature and low temperature, it is suitable for high temperature, low temperature, high altitude (not higher than 30000 meters or 45000 meters above sea level) and high and low temperature cycle tests of national defense industry, aerospace industry, automation components, automotive components, batteries, flat display module industry and related product materials Temperature and height comprehensive test. During high and low temperature test, this test chamber can be used for the test of heat dissipation test samples and non heat dissipation test samples.
Indicators
| Parameters
|
Inner box size
| 400*400*400mm (W*D*H)
|
Equipment size
| 630*620*1130mm (W*D*H)
|
Inner box material
| SUS304 stainless steel plate, 3.0mm thick
|
Outer box material
| Cold-rolled steel plate baking paint treatment, 1.5mm thick
|
Viewing Window
| Size 250*250mm two layers of tempered glass, transparent window with stainless steel mesh
|
Equipment Mobility
| The bottom of the equipment has four universal casters, which can be moved freely
|
Pressure range
| 0.5-100kPa, commonly used test air pressure 11.6 kPa
|
Vacuum level display
| SMC meter digital display type
|
Control method
| Push-button control
|
Timer
| LED digital display, free setting within 0-9999h
|
Pressure fluctuations
| ≤5%
|
Box door
| Single door with left opening and explosion-proof chain on the side of the door
|
Storage tray
| 2
|
Equipment weight
| 120kg
|
Power supply
| AC220V
|
Power
| 1kW
|
