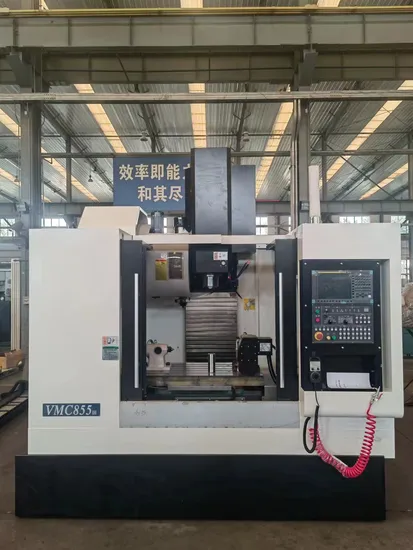

CNC Milling Machine Center with Atc Tool magazine

Product Description

Main configuration & accessories:
1. Resin sand casting;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, umbrella type and disc type are available;
7. Import bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Item	Unit	VMC650	VMC850	VMC855	VMC1160	VMC1370
X axis travel	mm	700	800	800	1100	1300
Y axis travel	mm	450	500	550	600	700
Z axis travel	mm	500	500	550	600	700
Spindle nose to worktable	mm	120-620	150-650	140-690	120-720	110-810
Spindle center to column	mm	500	550	595	650	750
Leadscrew diameter X,Y,Z	mm	Φ40	Φ40	Φ40	Φ40	Φ45
Linear guideway width X,Y,Z	mm	35/35/35	35/35/35	35/45/45	45/45/45	45/45/45
Worktable Length	mm	900	1000	1000	1200	1400
Worktable width	mm	400	500	550	600	700
Max loading capacity	kg	400	500	600	800	1000
Spindle taper		BT40	BT40	8000	8000	8000
Spindle speed	rpm	8000	8000	7.5/11	7.5/11	11/15
Main motor power	kw	5.5/7.5	7.5/11	BT40	BT40	BT40
Fast moving speed (X/Y/Z)	m/min	36/36/36	48/48/48	48/48/48	36/36/36	24/24/24
Cutting speed	mm/min	1-10000	1-10000	1-10000	1-10000	1-10000
Feed motor power	N/M	8/8/12	12/12/22		3/3/4.5	3 *3 *4.5
Capacity	pcs	Umbrella 16	Arm 24	Arm 24	Arm 24	Arm 24
Max tool diameter	mm	90	120	120	120	120
Max tool weight	kg	8	8	8	8	8
Max tool length	mm	250	300	300	300	300
Positioning accuracy	mm	0.008	0.008	0.008	0.008	0.008
Repeat accuracy	mm	0.005	0.005	0.005	0.005	0.005
Length	mm	2800	3000	3200	3540	3280
Width	mm	2200	2300	2300	2800	2560
Height	mm	2800	2900	2700	2800	3200
Weight	kg	3800	5200	5500	6900	11000

---
