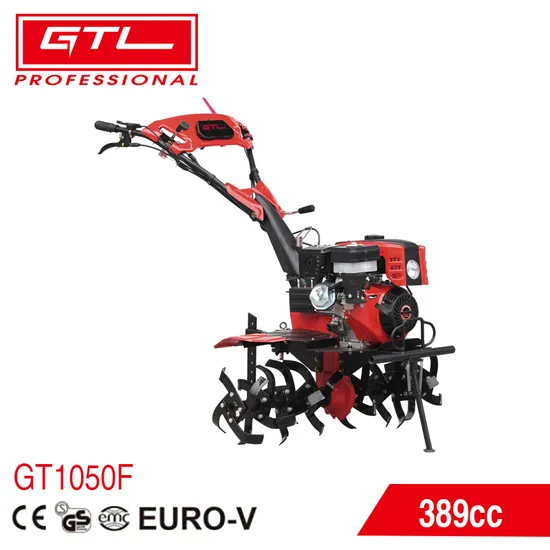

14HP 4 Stroke 389cc Agricultural Gasoline / Petrol Power Tillers Garden Rotavator Gasoline / Petrol Rotary Cultivator Tiller with Cast-Iron Gearbox (GT1050F)

US$458.00-532.00 20 Pieces (MOQ)

Basic Info.

Model NO.

GT1050F

Application Field

Agriculture, Livestock, Aquaculture, Fisheries, Forestry

Farming Policy

Dry Cultivating Machinery

Power Source

Gasoline

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Hanging

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

CE, EMC,Euro V

Color

Red

Warranty

1 Year

Fuel Tank Capacity

3.6 L

Displacement

389cc

Rated Power

13HP /3600 Rpm

Working Width

900-1350 (mm)

Gear Shifting

2 Forward , 1 Reverse

Engineengine Type

Ohv,25°tilt,Single Cylinder, 4-Stroke

Starting System

Recoil Start(Hand Start)

Max Power

14HP /3600 Rpm

Working Depth

100-300 (mm)

Gearbox

Cast-Iron Gearbox

Transport Package

Carton

Specification

96 cm x 58 cm x 84 cm

Trademark

GTL/OEM

Origin

China

Production Capacity

50000 PCS/Year

Product Description

14HP 4 Stroke 389cc Agricultural Gasoline / Petrol Power Tillers Garden Rotavator Gasoline / Petrol Rotary Cultivator Tiller with Cast-Iron Gearbox (GT1050F)
Product information

Item No.	GT1050F
Engine Model	188F
Engine Type	OHV,25°Tilt,single cylinder, forced air cooling,4-stroke
Displacement	389CC
Bore x stroke	88*64mm
Fuel tank capacity	3.6L
Starting System	Recoil Start(Hand Start)
Rated Power	13HP /3600 RPM
Max Power	14HP /3600 RPM
Working width	900-1350 (mm)
Working depth	100-300 (mm)
Gear Shifting	2 Forward , 1 Reverse
Blades Type	32 Pcs/(3+1)Group×4PCS (Z041)
Gearbox	cast-iron GEARBOX
Transmission	Gear-Driven
Transmission oil capacity	1.65L ( transmission) / 1.1 L (engine)
Wheel	One pair of 400-8 wheels
Certification	CE, EMC,EURO V

Product picture
Optional Spare Parts
APPLICATION SCENARIOS..................................................................................................
Product advantage
1.Simple - easy to use engagement levers and simple recoil starting
2.Smooth - Soil finishes with table-like smoothness
3.Dependable - Gear drive transmission, forged tines, and 14HP 4 cycle engine
4.Stable - Low center of gravity and rear mounted tines for easy control and stability in the row
It is the perfect tool for pre-planting ground preparation, as well as many other tasks during the gardening season, such as cultivating between garden rows. With a heavy-duty gearbox, fingertip throttle control and a clutch handle, it provides a consistent transmission of power to tines under varying soil conditions.
