Powder Packing Machine

Product Description

Filling powder: Detergent Powder
Filling Weight: 30g, 40g
Type: Fully Automatic Bag Filling and Packing Machine
Fully automatic process is conveyor powder,bag shape filling and weighing packing machine, and sealing, conveying for the finished bags.
(DJ-S3+DJ-3A180+ Finished Conveyor)
Product details:
1. Screw auger conveyor
Applicable:
This conveyor is suitable for multiple powdery product.Working together with packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet. And the machine can be used independently. All parts are made of stainless steel except the electric motor, bearing and support frame.
Product feature: Using double electric motors : feeding motor & vibrating motor, separately controlled. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products. Product funnel can separate from the tube for easy assembly. Special anti-dust design to protect bearing from dust. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing. Technical specifications:

Capacity	3-5m3/h
Machine weigh	150kg
Hopper size	230L
Machine Power	1.5KW
Conveyor Height	1.8M~2.4M
Power Supply	380V 50HZ
Diameter of tube	114MM
Material	SUS304

Automatic powder packaging machine:
Product feature: Working states&operation messages shows in Chinese/English by touch screen,recipes can be saved. Cutting position&we-tracking can be adjusted through touch screen during the continuous running. Temperature controller is used,difference in temperature range is in 3 degree.Dentiform sealer to seal hard. Air proof configuration is used,low noise,free dust,especially sued to pack powdery. Auger is drived by servo motor,air proof,gas-flushing and open-side filler. Multiple bag types are available, for instance , pillow bag , stand-up bag , carrying bag, etc. The way of using is tele surveyor and can be adjusted. The functions of trouble warning, for example : material being cut, safe-door being unlocked ,film departed, and coding ink out, etc. Technical specifications:

Metering Mode	Auger filling (Use for Powder)
Bag size	W15-110mm L20-1500mm10-100g
Package Weight	10-100g
Packaging Speed	30-40bags/min
Power Supply	380V/220V 50Hz/60Hz
Total Power	1.5KW
Total Weight	180Kg
Overall Dimensions	600X700X530mm

Automatic powder packaging machinMachine feature
1. Filling, measuring, bag making, sealing, cutting, counting, hot pressing, batch number, rounding and other work can be automatically completed in the packaging process, and the photoelectric tracking target positioning does not need to be adjusted.
2. Intelligent control system, Chinese and English touch screen. Simply set the parameters to precisely control system operation.
3. The heat sealer controls the uniform heating of the bag side, and the upper and lower sides can be separately adjusted.
4, the replacement of the tool can achieve a letter shape, pattern shape cut, one-line cut with the cut, the bag is stable and reliable, no card pocket, easy to operate, can be equipped with wheel-type coding machine, batch number, shelf life and so on

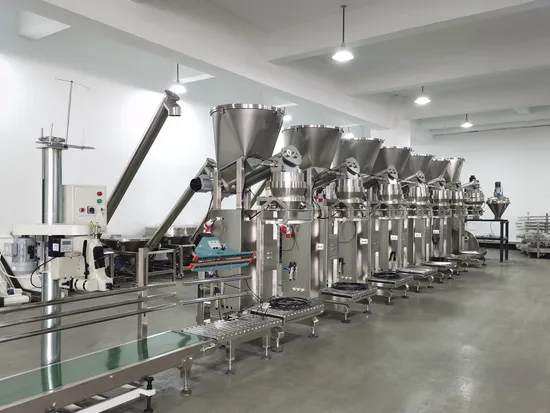

Machine picture Machine drawing
Electrical Parts Configuration

No	Name	Model	Brand	Original
1	Filling servo motor	JSMA-MB10ABK01	Teco	Taiwan
2	Mixing geared motor	CV22-400-40S	Thorne	Italy
3	Stirring drive sprocket	08B-25	Guimeng	Shanghai
4	Stirring passive sprocket	08B-20	Guimeng	Shanghai
5	Stirring chain	08B-1	Guimeng	Shanghai
6	Foot switch	EKW-5A/B	Tracy	China
7	Switching power supply	S-35-24	Ming Wei	Taiwan
8	Contactor	LC1E1210M5N	Scheider	France
9	server Driver	JSDEP30A	Teco	Taiwan
10	thermal relay	LRE08N LRE07N	Scheider	France
11	Intermediate relay	RXM2LB2BD 10A	Scheider	France
12	touch screen	Smart 200	Simens	Germany
13	Electronic scale	1022 10kg	Dingjiang	Shanghai
14	Level sensor	CR30-5DN	Autonics	Korea
15	Emergency stop switch	XB2BS542	Senao	Shanghai
16	Breaker	IC65N 4P D32 A	Scheider	Shanghai
18	Filter	SH210-10	Shangheng	Shanghai
19	Weighing module	ID	Bowei	China
20	PLC	Smart 200	Simens	Germany

---
