Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
CE, ISO 9001
Width of The Worktable
152mm
Length of Worktable
450mm
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Origin
Chizhou, Anhui, China
Production Capacity
50sets/Month

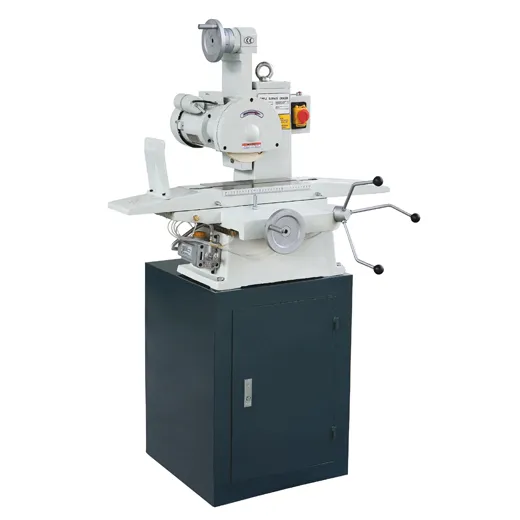

Product Description
Main features:
1)Integrated grinding head of high quality, high rigidity and accuracy.
2.Small size, light weight,easyoperation&maintenance.
3)Centralized lubrication for oil pump.
Standard configuration:Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.Special configuration:Stand, permanent magnetic chuck, precision flat vise.Ball leadscrew model.
Specification:
| SPECIFICATIONS | Metric | Inch |
| Longitudinal stroke | 340mm | 14 |
| Lateral stroke | 170mm | 7 |
| Grinding height | 210mm | 8 |
| Area of table | 152mm×304mm | 6×12 |
| Width of T-slot | 1-12mm | 1-0.47 |
| Cross feed per graduation | 0.02mm | 0.001 |
| Cross feed per round | 2.54mm | 0.1 |
| Vertical feeds per graduation | 0.025mm | 0.001 |
| Vertical feed per round | 1.25mm | 0.05 |
| Roughness | 1.6μm |
| Grinding wheel | 180mm×32mm×13mm |
| Power of motor | 0.55kw |
| N. W. / G.W.of machine | 210/258kg |
| N. W. / G.W.of stand | 30/54kg |
| Overall dimension of machineL×W×H | 930×780×730mm |
| Case dimension of machineL×W×H | 930×780×1480mm |
| Case dimension of standL×W×H | 720×550×550mm |
>>
