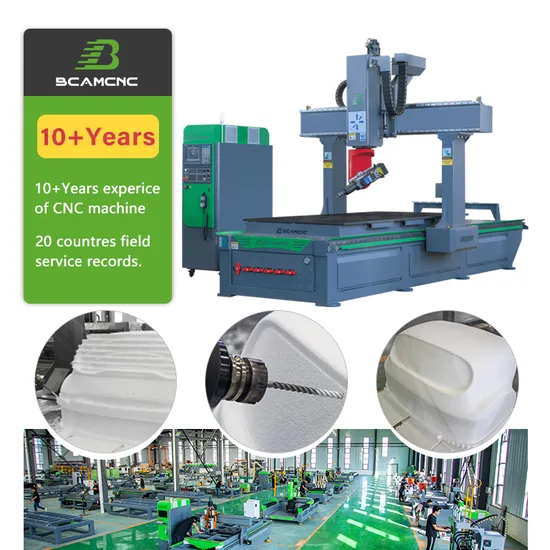

5 Axis CNC Router Wood Carving5 Axis CNC Metal Router Machinecnc Router for Wood 6090 5 Axis

Product Description

Product Description
ADVANTAGES
1.MATERIAL:Granite,Marble,Limestone,Slate,Travertine,Basalt,wood,Aluminum,Composite material
2. Constant Tip Speed Machining - Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion.
3. Volumetric 3D Laser Compensation - This procedure is standard on all machines prior to shipment to our custom_x0002_ers. This feature compensates for position errors within the three dimensional working envelope of the machine.
4.Linear Compensation - This procedure is standard on all machines during the construction phase and compen_x0002_sates for inherent variances in components during machine construction.
5.Fixture Placement Compensation - Allows the user to mechanically locate three points on a fixture during initial program set up. These points are used as reference for our controller to automatically align the program to the new fixture location.
6.Tip Center Rotation - Allows for maintaining tool tip posi_x0002_tioning when commanding a rotary axis to move in coordi_x0002_nation with two or more linear axis
SPECIFICATION

Product Name	Economical 5 Axis CNC Wood Router
Working Area	1325//1530/2030/2040/Customizable
Spindle Power	9kw Italy Hiteco air cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Table Surface	Vacuum table+T-solt table
X,Y,Z Rail and Trasmission	XY axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	90m/min
Max. Working Speed	70m/min
Spindle Speed	6000-24000RPM
Drive Motors	Taiwan delta servo motor and drivers
Working Voltage g Environment	AC380v/50HZ/3 phase
Command Language	G Code
Operating System	Taiwan Syntec control system
Interface	USB
Software Compatibility	Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment	Temperature:-20ºC~45ºC Relative Humidity: 5%~75%
Cutting thickness	According materials

Machine Details
MACHINE DETAILS
CNC Router 5-Axis Economical
Welded frame heavy bed,
Standard steel gantry,
Welded iron columns.
9.0kw Hiteco spindle + Oakmond5-axis head
Delta 11kw VDF-MS frequency conversion with brake resistor.
Japan YASKAWA 1300W servo/Z axis with brake, Xinbao reducer.
Vacuum adsorption
High efficiency, fast speed, suitable for processing various materials.
Operation table
New generation 610MA,
New generation MPG handwheel,
Support multi-language switching.
Lubrication system
Automatic lubrication, lubricating oil label:
Great Wall No. 32 hydraulic oil (white oil).
Tool setting and tool magazine
Automatic tool setting instrument
12-nosition disc tool changer
safety protection.

Samples Display
SAMPLES DISPLAY
RECOMMEND PRODUCTS

Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: How to choose a suitable machine?
A: You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:Do you have a setup and equipment commissioning service?
A: Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.

---
