Heavy Duty 2 Side Planer Moulder Four Sided Woodworking Thickness High Speed Wood Planing Machine

Product Description

Product Function

Heavy duty 1300 mm width double side planer machine

Product Specification

Model	MB1300B-2
Maximum cutting width	1300mm
Maximum workpiece thickness	110mm (Customized 200mm)
Minimum thickness of planing	5mm
Feeding speed	0.1-30m/min
Main motor power	22kw*2 (Customized 30kw)
Feeding motor power	4kw (Customized 5kw)
Power of lifting motor	0.55kw
Planer cutter diameter	180mm
Size	3100*2100*1850
Weight	2900kg

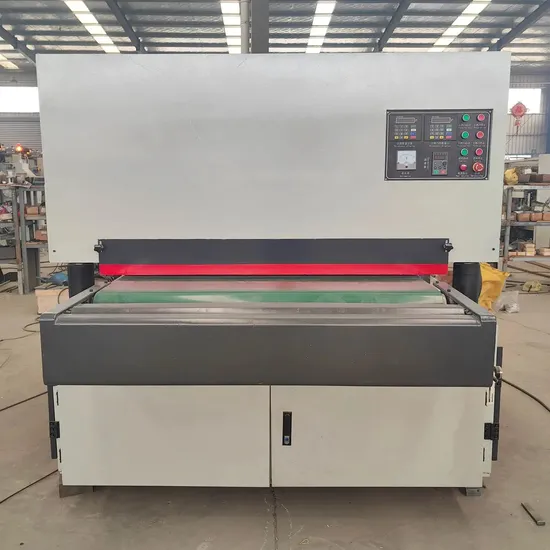

Detail Photos

Button type operation panel , simple operation,making it more convenient for user to operate ,with adjustable speed
The internal circuit board has neat wiring, stable workpieces,long service life ,strong universality and convenient operation

---
