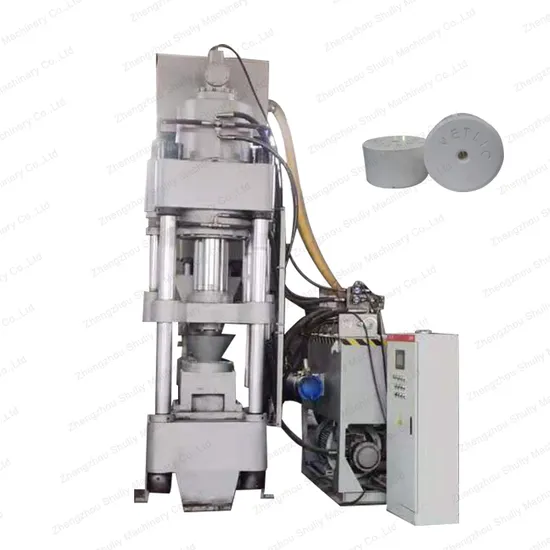

Hydraulic Licking Salt Block Press Machine

US$19,000.00-45,000.00 1 set (MOQ)

Basic Info.

Model NO.
SL
After-Sales Service
Online Support/Engineers Installation
Type
Four-Column Hydraulic Press
Feature
Automation, Precision, High Efficiency
Certification
ISO9001
Customized
Customized
Warranty
24 Months
Name
Licking Salt Block Machine
Block Shape
Round or Square
Block Weight
2-10kgs
Machine Pressure
100t-500t
Transport Package
Wooden Case
Trademark
Shuliy
Origin
China
HS Code
0000000000
Production Capacity
30 Sets Per Month

Product Description


The salt licking briquetting machine is a device that scientifically formulates the mineral elements, vitamins and other trace elements and nutrients required by large livestock such as cattle and sheep, and then processes them into blocks, cakes and other special shapes by the salt licking briquetting machine. . The compressed block is a kind of feed for cattle and sheep to lick. It has different shapes, some are cylindrical, some are rectangular or square. It is also called block compound additive, usually referred to as "licking block" or "licking block". Brick".
No. Parameter Unit SL100 SL200 SL315 SL400 SL500 SL720
1 Large nominal power kN 1000 2000 3150 4000 5000 7200
2 Liquid working pressure Mpa 25 25 25 25 25 25
3 Large distance between the lower plane of the slider and the worktable mm 1100 1100 1150 1200 1200 1200
4 Slider transport
Suppressing force kN 1000 2000 3150 4000 5000 7200
Return force kN 250 300 500 800 800 9000
Stroke parameters Itinerary mm 400 500 500 500 500 500
Fast down speed mm/s 130 120 120 120 120 110
Slow down mm/s 20 15 15 15 15 14
Floating suppression speed mm/s 12 10 8 8 8 8
Suppressing speed after pressing mm/s 10 8 6 6 6 6
Return speed mm/s 100 100 80 80 80 70
5 Operating parameters of ejector piston (optional) Ejection force kN 350 350 400 400 450 500
Pull down force kN 450 450 500 500 500 550
Itinerary mm 300 300 300 350 350 350
Jacking speed mm/s 100 100 90 90 90 90
Floating downward speed mm/s 12 10 8 8 8 8
Retraction speed mm/s 80 80 70 70 70 70
6 Down cylinder piston parameters Reach out kN 350 500 800 600 600 600
Retraction force kN 250 350 600 900 900 900
Stroke mm 90 90 100 120 120 120
8 Effective area of worktable (left and right × front and rear) mm 575×550 685x800 685x800 845x1000 845x1000 1000*1100
9 Total motor power kw 7.5 15 22 30 30 45
10 Briquette weight Kg 2 2-5 4-7 2-10 5-10 10-20


FAQ

1. Are you manufacturer? Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
