Syl Series Middle Six Shuttle Circular Loom for Woven Bags

Product Description

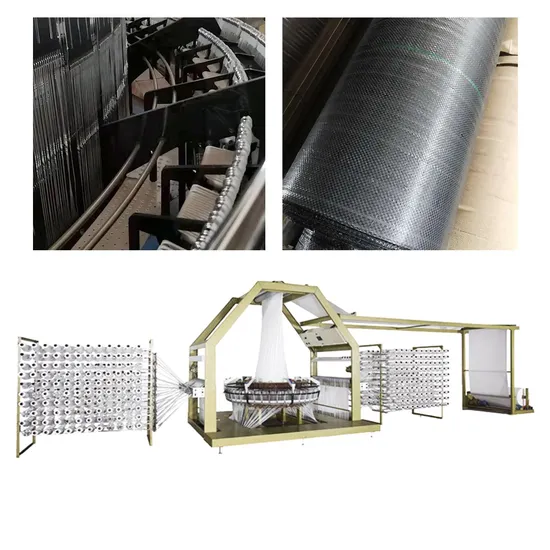

Syl Series Middle Six Shuttle Circular Loom for Woven Bags
Descripition:
The structure of this circular loom is plane cam, without oil lubrucation, run steady, high efficient, energy cnservation, reduce the production coat greatly, high-precision tension auto control system provide good condition forbase coth with high quality. PLC central control and advanced LCD screen make the operation more easier, this machine sutiable for processing of woven bags, FIBC, tarpaulin, geotextile and other woven cloth.
Main technical Datas:

Shuttles quantity	6
Main machine rotation	0-135r/min
Main motor power	4KW 4P
Folder width	700-1250mm
Applicable thread	PP/HDPE
Max. Qty. of warp film	1092Pcs
Weft film density	adjustable
Bobbin size(IDXL)	38*230mm
Winding dia. of weft film	105mm
Overall size	11.5*3.05*3.5m
Total weight	4000kg

Appliaction:
Company Information:
FAQ: 1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)

2. How many days will you finish installing?
We will finish installation and training within 15 days.

3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.

5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.

---
