Hot Pipe Thread CNC Lathe Qkp1212/Qkp1219/Qkp1223

Product Description

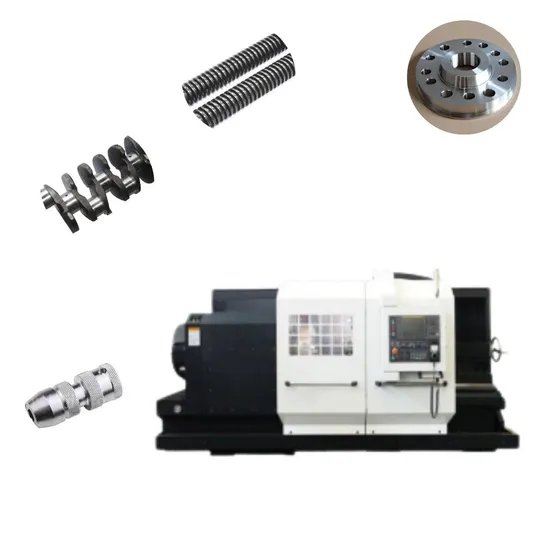

Pipe thread CNC lathe QKP1212/QKP1219/QKP1223
QK series pipe thread lathes are mainly developed for the turning ofoil field pipe threads, suitable for the turning of various pipe threads also,it can be used as an ordinary CNC lathe with a semi-closed oop control system, which is suitable for processing of shats, sleeves anddiscs parts with complex shapes, such as turning inner and outer cylindrical surfaces, inner and outer conical surfaces, arc surfaces,endsurfaces,grooving,chamfering,threading,etc.System function introduction:
1.The vstem can process continuous revolving bodies taken various curves as generatrix.The processing resolution is 0.001mm.
2.lt can process cylindricaland tapered threads, as well as continuous connecting threads between the cylinder and tapered surtaces,and end threads.
3.With automatic toolcompensation function.
4. With blank circulation,processing thread circulation, grooving circulation, etc.
5. The zero points of the workpiece coordinate system can be set arbitrarily, and the operation is very convenient
Specification:

Model No.
Item No.	QKP1212	QKP1219	QKP1223
Specifications
External Dia.of pipes	120 mm	190 mm	230 mm
Swing over bed	800 mm	800 mm	800 mm
Swing over carriage	450 mm	480 mm	480 mm
Max.length of workpiece	1000/1500/2000/3000 mm	1000/1500/2000/3000 mm	1500/3000/5000 mm
Max.length of turning	800/1350/1800/2800 mm	800/1300/1800/2800 mm	1300/2800/4800 mm
Span of guideway	550 mm	600 mm	755 mm
Spindle
Spindle nose	C15	A2-15	A2-15
Taper hole of spindle	metric system 140	metric system213	cylindrical hole

Taper hole of spindle	metric system 140	metric system213	cylindrical hole
	A2-8	A2-11	A2-11
Spindle bore	130 mm	200 mm	240 mm
Range of spindle speed	20~1000 r/min	20~600 r/min	20~600 r/min
Chuck	380 mm	500 mm	500 mm
Feed motion
Min.feed of X/Z-axis	0.001/0.001 mm	0.001/0.001 mm	0.001/0.001 mm
Rapid travel of X	3/6 m/min	4/5 m/min	4/5 m/min
of X	390 mm	420 mm	420 mm
Tool post&Tailstock
Turret type	V4240	V4300	V4300
Section of tool shank	32x32 mm	40x40 mm	40x40 mm
Indexing repeatability	0.008 mm	0.008 mm	0.008 mm
Max.cutting force	19600 N	19600 N	19600 N
Dia./Travel of tailstock	100/250 mm	100/250 mm	100/250 mm
Taper hole oftailstock	Morse5	Morse6	Morse6
Other
Main power	11 kw	15 kw	15 kw
Accuracy	IT6~IT7	IT6~IT7	IT6~IT7
Roughness	Ra1.6	Ra1.6	Ra1.6
Length	3227/3677/4177/5177mm	3605/4105/4645/5600mm	3605/4105/4645/5600mm
Weight	1800 mm	2219/2330 mm	2219/2330 mm
Hight	1850 mm	1830/2100 mm	1830/2100 mm
CNC system	Fanuc 0i-TF /Siemens828

Configurationinstructions:
QKP1212 spindle speed is manual 3 gears shifting and hydraulic automatic 6 gears shifting, with a total of 16 levels of speed change.
The QKP series come with hydraulic automatic 4 gears shifting and infinitely variable speeds within each gear.
QKP1212/QKP1219/QKP1223 equips standard manual talstock,QKP1226/1235 equips standard motor-driven tailstock.
QKP1212 equips two 3-jaw manualself-centering chucks:/QKP1219/0KP1223 and QKP1226/1235 are with standard front4-jawmanualindependent chuck and rear 3-jaw manual self-centering chuck.
Otional accessories are available, such as steady ret, follow rest, chip conveyor, air conditioner for electrical cabinet,etc.

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
