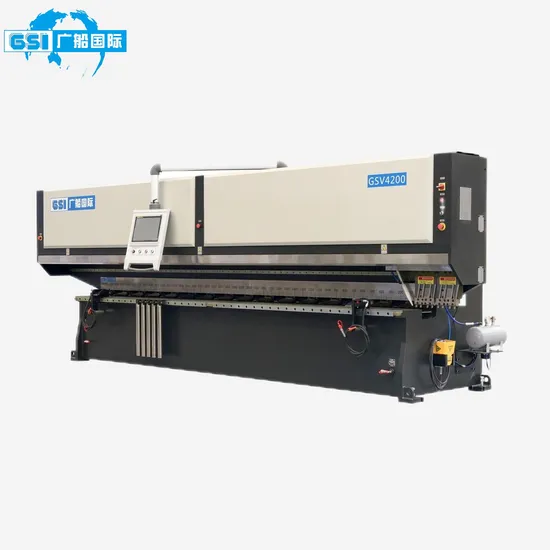

Vertical Grooving Machine V Groover for Sheet Metal 4200mm

Product Description

Product Description
-- The whole steel body is welded, and the internal stress is removed by annealing heat treatment.
-- High strength alloy steel pinion drive and rack, easier maintenance, lower failure rate, fast and stable running speed.
-- Automatic spray air cooling mode can cool the tool, improve the service life of the tool, with no pollution to the workpiece.
-- Taiwan Weisheng hydraulic control system, full automatic of pressing and loosening of pressing plate and jaw, reliable pressure stability.
-- Standard configuration with single blade of high speed steel tools, optional with double cutter head and alloy tools.

It is used for V-groove processing before sheet metal bending, so that the workpiece can
obtain smaller rounded corners and more accurate bending angle and straightness.
Main Technical Parameters of GSV Vertical CNC Grooving Machine

No	Model	Length of table (mm)	Workpiece width (mm)	Workpiece thickness (mm)	Planing Power (kw)	Number of presser foot (~)	Planing Speed (m/min)	Return Speed (m/min)	Moving speed of steel plate (m/min)	Cut in Speed (m/min)	Overall dimension			Weight (kg)
											L(mm)	W(mm)	H(mm)
1	GSV3200	3200	1250	0.5~6	4.5	12	0~60	0~100	6	0.5	4650	2850	2100	10000
2	GSV4200	4200	1250	0.5~6	4.5	16	0~60	0~100	6	0.5	5650	2850	2100	12000
3	GSV5000	5000	1250	0.5~6	4.5	19	0~60	0~100	6	0.5	6450	2850	2200	15000
4	GSV6000	6000	1250	0.5~6	4.5	23	0~60	0~100	6	0.5	7450	2850	2300	18000

View more products, pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After nearly 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ
1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment.4. Q: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )5. Q: Can you provide customized machine and tool? A: Yes,we can design and manufacture according to your specific requirements.6. Q: How do you guarantee your quality? A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.7. Q: Where is your factory located? How can I visit there? A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
