Product Details
Product Description
Product Description
Place of Origin:Liaoning, China
Brand Name:GCAN

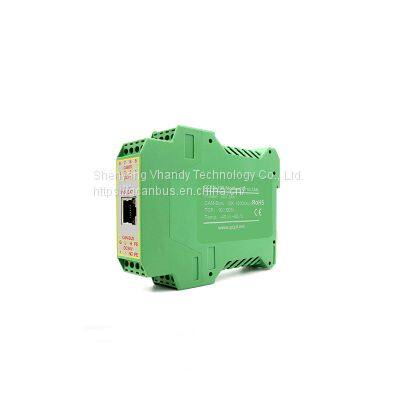

Model Number:GCAN-205
Function:CAN Bus Modbus TCP
Interface:RS485, Ethernet interface
CAN baud rate:5Kbps~1Mbps
Processor:High speed 32-bit industrial grade processor
Power supply:DC+24V
Temp:-40.00℃~ 85.00℃
Dimensions:115mm (L) * 100mm (W) * 22mm (H)
Support protocol:Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
Packaging & DeliverySelling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
| Quantity(sets) | 1 - 500 | >500 |
| Est. Time(days) | 7 | To be negotiated
|
Ethernet FeaturesRestore the network connection automatically after disconnecting, can establish a TCP connection.Support protocol including Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCPSOCKET working mode compatibility (TCP Server, TCP Client, UDP, etc), program communication software according to standardSOCKET rulesSupport secondary development, we can provide VB routine or you can look for some another basic programming routine aboutEthernet online
CAN FeaturesIntegrate one CAN-Bus channel, with terminal connectionSupport CAN2.0A and CAN2.0B, conform to ISO/DIS11898Support communication baud rate: 5Kbps~1MbpsElectric isolation, insulation level: DC 3000V
Hardware Features
|
High speed 32-bit industrial grade processor
|
Embedded Watchdog timer
|
External voltage (DC+24V, 40mA)
|
Electrostatic discharge (ESD) Immunity level: Contact Discharge±2KV, Air Discharge±15KV
|
Fast transient Burst Impedance Level: ±1KV
|
Surge immunity level: ±1KV
|
Working temperature: -40.00℃~ 85.00℃
|
Working humidity: 5%~95%, no condensation
|
Dimensions: 115mm (L) * 100mm (W) * 22mm (H)
|
Customization
|
Service:1 years guarantee, and professional technical staff help.
Supply ability: We usually have 3000-5000 units in stock for urgent orders.
Capacity: 50K/month, can meet the demand of most enterprises application.
Lifetime: At least 5 years for each device, can still produce just if you need.
Cooperation: Welcome the cooperation with distributors all over the world.
>>
