6yl-130 Palm Kernel Oil Extraction Palm Kernel Oil Expeller Oil Press Machine

Product Description

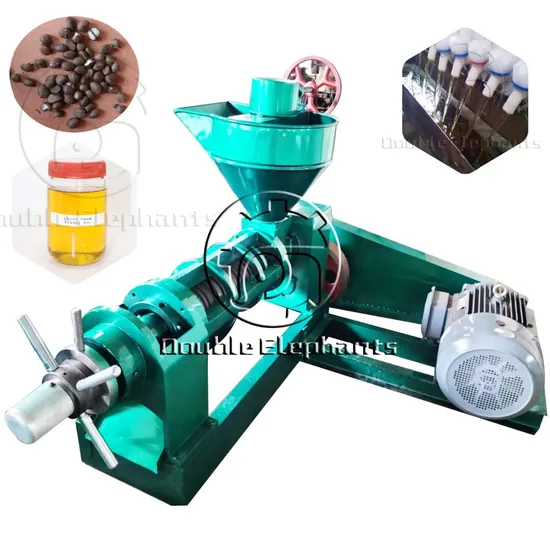

6YL-130 Palm kernel seed oil extraction expeller machine
Description for 6YL-130 sunflower/soya/peanut screw oil press
This oil press machine is the patented product improved by our factory,thea more advanced veg. oil processing machinery, With the characteristic of the simple structure, easy operation, energy saving, low noise, high rate of oil, adaptability and continuous operations.
The oil seeds suitable for 6YL-130 sunflower/soya/peanut screw oil press
The screw oil press is used to press kinds of oil seeds for the edible oil, such as rapeseeds, peanut, soybean, sesame seeds, cottonseed, coconut, palm kernel, etc.
Working Princciple and Structure for 6YL-130 Screw oil press
1.Working principle:This oil press machine uses the poer of the space change for the material in the chamber and the driving force from the scre shaft as well as the resistance from the tooth curve in the pressing ring.The friction force from material pressing produces big pressing power,then oil-segregates from the material and discharges from the pressing bar gap and pressing ring groove.
2.Structure: This oil press machine consists of five main parts,including gearbox,press case,hopper,pressing screw and main body. Advantages for 6YL-130 screw oil press
1.High oil yield(the rate of the outlet oil >93%),residual oil of the cake is less,crude oil is clearer,less degums.
2.The oil press machine's material is better,the accessories are wear resistance and long service life after quenching conditioning treatment.
3.For the gear-box's gears,adopt the special helical&couping fear's design and low noise,long working life.
4.One Year Warranty,high quality
5.Raw Material:soybean,cottonseed,peanut,rapeseed,sunflower,teaseed,copra,tung seeds and palm kernel palm pulp,casterseed,jatropha seed ect.
Main Data for 6YL-130 sunflower/soya/peanut screw oil press

Model	Capacity(T/D)	Power(kw)	Dimension(mm)	Weight(kg)
6YL-68 oil press machine	1-1.5t/d	5.5	900*530*760	160kg
6YL-80 oil press machine	2-3t/d	5.5	1320*540*1020	380kg
6YL-95 oil press machine	4-5t/d	7.5	1810*560*735	480kg
6YL-100 oil press machine	4-5t/d	7.5	1910*610*765	480kg
6YL-120 oil press machine	5-6t/d	11	2060*610*760	650kg
6YL-130 oil press machine	8-10t/d	18.5	2100*700* 770	850kg
6YL-160 oil press machine	14-16t/d	30	2200*850*1560	1000kg
HPYL-180 oil press machine	15-18t/d	30	2280*700* 770	1100kg
HPYL-200 oil press machine	25-30t/d	37+2.2	2700*1000* 2700	2700kg

Spare parts for 6YL-130 sunflower/soya/peanut screw oil press

---
