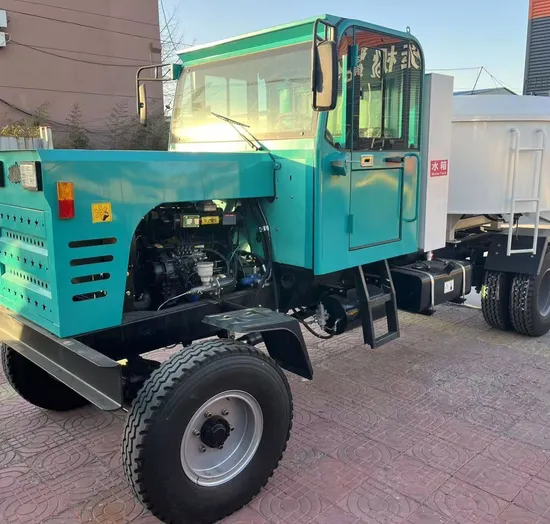

Diameter Drum Flat Tank Multifunctional Vertical Cement Concrete Mixer

Product Description

Product Description

Engine model	4102 Boosting	Mixing reducer	Hard tooth surface multi-stage reduction
Transmission	Five Plus One Belt Synchronizer	Residual discharge rate	≤ 1%
Transfer box	330 Two wheel drive and four-wheel drive switching	Discharge port	180 ° adjustable rotation
Front axle	Hydraulic to pneumatic brake	Water addition method	Automatic water supply
Rear axle	Heavy duty cast steel air brake	Weight	≈ 4 tons
tyre	Six wheeled all steel wire tires	vehicle size	4850 * 2000 * 2500
water tank	Rear/side mounted	Mixing time	≈ 3-4 minutes
Mixing method	Hydraulic stirring	Frame leaf spring	Internal hanging
Driver's cab	Twin/Single	transmission shaft	Forged 140 heavy-duty
Mixing tank thickness	1.2cm wear-resistant alloy manganese plate	Hydraulic components	12 months warranty
Tank diameter	2000mm	Discharge groove length	1000mm
Tank height	900mm	The lowest point of the discharge chute	750mm

FAQ :
1. What Certificate do you have?
TDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.

---
