Product Description
Product Description

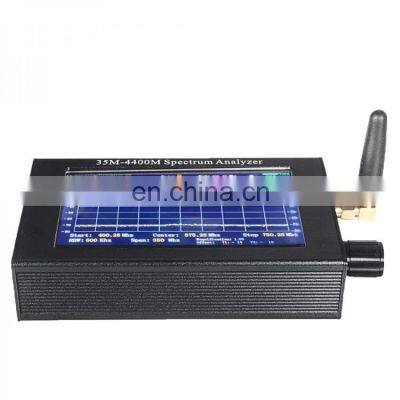

4.3" Color LCD Perfect 35M-4400M Handheld RF Spectrum Analyzer For Walkie Talkie Toy Remote Control Product Description Features:- Using stm32f407 MCU (main frequency 168M) + 4.3-inch TFT (480*800) color LCD screen.- All aluminum alloy shell + rotary encoder control.- Powered via USB, full English display.- Spectrum display range: 35M-4400Mhz; input impedance: 50 ohms.- RBW: 10khz, 50khz, 100khz, 200khz, 500khz, a total of 5 gears are adjustable.- Screen scan points: 700 points.- Scanning span: 7M (10Khz), 35M (50khz), 70M (100Khz), 140M (200Khz), 350M (500Khz).- dBm range: -80dB to 10dB (supports manual adjustment of calibration range). There is no amplifier circuit inside the machine. If you need to measure small signals, you need an external amplifier.- Maximum access signal: 10dB.- Working mode: superheterodyne scanning spectrum analyzer, single scanning time 800ms.- USB power supply is used by default, and customers can add lithium batteries by themselves (Installing lithium batteries instructions is provided. Batteries are not included).- Product specifications: 145mm*70mm*30mm. Weight: 200g.- Use range: walkie-talkie, toy remote control, 2.4G wifi.- It uses local oscillator signal and external test signal to mix to obtain the difference frequency signal, and calculate the external test signal amplitude through a detector. Using a high-precision VCO signal source, the heterodyne signal frequency can be measured very accurately. Since the scanning range is very large (35M-4400M), there is no special detection circuit for external measurement signals due to factors such as cost, and there may be errors in the measurement amplitude. Therefore, the product has added magnification and displacement parameters. Users can adjust the displayed waveform by themselves. The amplitude display can be adjusted and calibrated.Package Included:- 1 x Set of Portable Spectrum AnalyzerNote: Batteries are not included. Detail photoFAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
