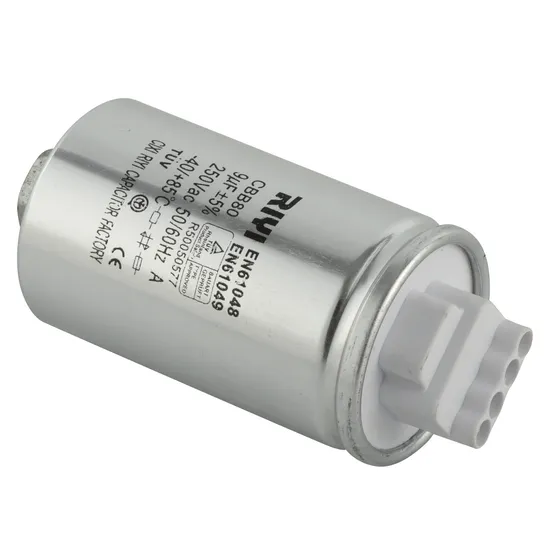

Cbb80 Capacitor for Lighting 2~80UF 250V, Lamp Capacitor

Product Description

CBB80
Compensation Capacitor For Lighting Fixtures
1. Features and uses
The use of high-quality Germany Treofan high temperature polypropylene film made no sense of winding, high temperature plastic housing or the use
of light aluminum shell oxidation processing, the internal structure of device discharge resistors and fuses. The capacitor has advantages of low dissipation,
high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity,etc. Used in
high and low pressure sodium lamp, mercury lamp, metal halide lamp, since the role of power factor compensation.
2. conditions of usage
Elevation: the safe operation of the region in the altitude of not more than 3000m.
Applied voltage when the voltage remaining: to be filled more than 10% of rated voltage.
Dirty: to install to run the region free of conductive dust, no corrosive gas, no inflammable media.
Operation Temperature: Operation temperature range of capacitor -40 ~ 105 .
3. Technical parameter
Rated Voltage:250VAC
Rated frequency:50/60Hz
Capacitance range:2~50F
Capacitance deviation: ±5%
Tangent of loss angle tanδ≤0.2%(20ºC,100Hz)
Standing Voltage
Between terminals:T-T=2.0Un/2s (No flashover or permanent breakdown)
Between terminals and case: T-C≥2100VAC/2s( No dielectric breakdown or flashover)
Executing Standards: IEC61048,IEC61049,EN61048,EN61049,UL810
Production Process

---
