Factory Directly Supply Automatic Genuine Leather Knife Cutting Machine for Making Shoes Bags

Product Description

Factory Directly Supply Automatic Genuine Leather Knife Cutting Machine for Making Shoes Bags
Product Description

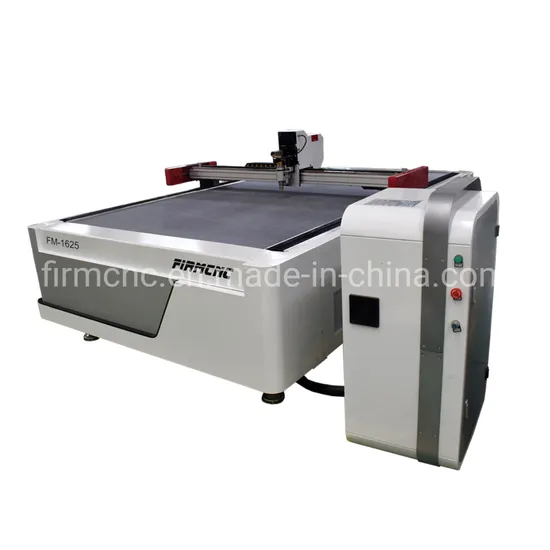

FIRMCNC Brand 1625 round knife cutting machine with auto feeding worktable, equipped with double knives-one for punching and one for cutting(various shapes). As with auto feeding worktable, so it can save much labor cost. Besides, equipped with auto rectifying deviation system, it can help to keep in high working precision, greatly improve the efficiency. Widely used in sofa, curtain, table cloth etc. industries.
FIRMCNC osciliting knife cutting machine Features
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. Imported linear guide and servo motor ensure high precison and fast working speed.
3. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
4. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
5. High efficiency can be realized without making a high-cost knife model.
6. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
7. Cutting by knife, no pollution gases.
8. Patent product, stable performance, safety and stability, users in wide range.
FIRMCNC osciliting knife cutting machine Technical parameters

Model	FM1325/ FM1625/ FM2030 optional
Working area	1300*2500mm/1600*2500mm/2000*3000mm
Rated power	11KW
Fixed mode	Flate plate table /auto feding plate optional
Multifunctional heads optonal	Vibration knife Circular knife Punching knife Oblique knife Pen Punch roller Milling knife Projector and camera optional
Safety device	Using infrared sensors, responsive, safe and reliable.
Translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickess	≤22mm(according to different cutting materials)
Cutting material	Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber
Repated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide,aynchronous belt, ball screw)
Instruction system	HP-GL compatible format
Control system	TC6828(AOL custom made)
Voltage	380V±10%
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pum

FIRMCNC osciliting knife cutting machine Main parts:
FIRMCNC osciliting knife cutting machine Applicable industries
Advertising,packaging,composite materials,sporting goods,bags,sealing gaskets,textile and garment,leather,shoes,bags handbags,printing,automotive interior air chairs,lamps and lanterns design of plastic products,paper products,low thickness of flexible material cutting,etc.
FIRMCNC osciliting knife cutting machine Applicable materials
Leather,sticker,cardboard,Plastic box,corrugated cardboard,film,foam board,acrylic board,rebound rubber,rubber cloth,gasket material,garment cloth,footwear material,bags materials,non-woven fabrics,
carpets,sponge,PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE,and composites,whose thickness of above materials is below 22 mm.
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including oscillating knife cutting machine, cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Customer visit factory
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, video call ,email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5:What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q8:How's the payment?
We provide L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal payments for offline orders and online order

---
