100t Per Day Maize Mill Fully Automatic Maize Flour Mill Machine

Product Description

100t Per Day Maize Mill Fully Automatic Maize Flour Mill Machine
Different countries have different requirements for the final product, such as in Zambia, people like breakfast maize meal; in Kenya, Zimbabwe, Tanzania, Nigeria, people like fine maize flour; but in Uganda/Rwanda/Burundi, people like super fine super white maize flour. we can design the Maize Flour Mill Machine according to the needs of your local markets.

Capacity	Process 50tons raw maize per 24hours
Final Product	Different size of maize flour, maize meal, maize grits, germ and bran
Warehouse Size	33*9*7.5m (L*W*H)
Container	3*40'
Installing and Commission	About 2 months

---Product Specification

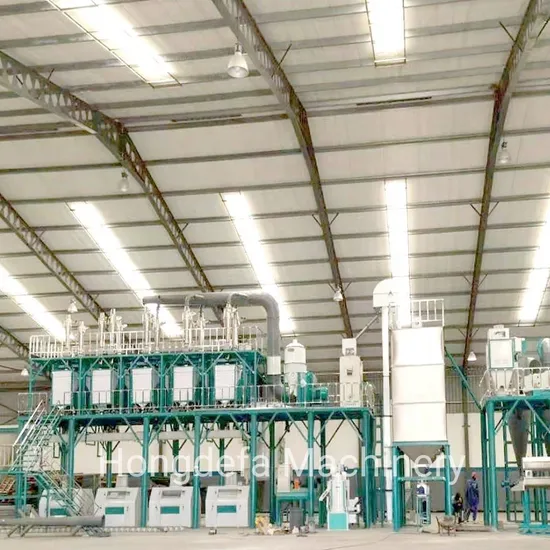

This is our 100t/24h Maize Flour Mill Machine. It can process 100tons raw maize per 24hours. It is from A to Z, means from start to end. such as maize cleaning machines-dampering-degerminating-roller milling-sifting-packing-control system.
The destoner is applied for efficient separation of stones and pebbles, glass, and other high-density matter from the stream of grain. It can remove all the impurity, such as steel, stones, ropes and so on.
The damper can add water to moisten the raw maize. Double layer damper, stainless steel one without rusty and working life is longer than the steel one. Two layers for moisturing much more efficiency.
Our Degerminator with Japan technology, it can remove the maize bran and germ with the most efficiently. you can get the super white maize meal with low fat and without any black point.
In the 100t/24h Maize Flour Mill Machine, we use European standard maize roller mill.It can work stable and keep the capacity is more than 100tons per 24hours.
In the 100t/24h Maize Flour Mill Machine ,double bin sifter, we will give you different hole size of mesh screens, to get the different size of corn flour, corn meal, corn grits.https://www.made-in-china.com/sendInquiry/prod_gMtJsYIxYdfC_eqTERByCZYUK.html?plant=en&from=shrom&type=cs&style=3&page=p_detail
The control system is the Touch Screen smart control system. it is more convenient to control all the machines working. the screen is the best quality in China.
The final product of Hongdefa 100t/24h maize flour mill milling machine.
Our maize flour milling plant can process both white maize and yellow maize, can produce super fine maize flour, refine maize flour, maize meal, maize grits, maize samp, semoule, etc.
---Product Details
Stainless Steel Moisture bin,the maize can sleep,and the maize skin can absorb moisture to better remove the germ and bran. And all the pipes are stainless steel, which is very strong, and the working life is three times that of ordinary pipes.
---Sales And Service Network
For the maize flour milling plant, we mainly export to Africa and South America.
Here are some successful projects of our maize flour mill machine.

---Other capacities maize mill machine and wheat mill machine

Product Name	different capacity of maize flour milling machine for flour mill
Final Product	Breakfast meal, roller meal, germ and bran
Flour Extraction	Adjustable, depending on different clients' requirements
Material	The pipes in the milling section are stainless steel, and the moisture bin is stainless steel
Main machine	Japan technology degerminator, European standard Pneumatic roller mill, Plansifters
Packing machine	Auto weighing& packaging machine
Control system	PLC control system
Certificate	CE, BV, SGS,PVOC,COC, SONCAP,ISO
Power	Electricity 380V/440V 3phase 50Hz/60Hz
Project	Kitwe/Zambia; Windhoek/Namibia; Lagos/Nigeria; Nairobi/Kenya running maize mill plant

The maize flour can be used for making food like Ugali, Fufu, Sadza, Nshima, etc.
Maize grits can for making snacks food,
Maize bran can make animal feeds,
Maize germ can make oil.
Hongdefa maize mill machine technique flow is from cleaning to degerminating to milling to sifting to packing.
First, the maize enters the cleaning section, have gravity classification stoner remove the stone, then through the moisture damper is important equipment to control the water content of the grain during in flour mills, stainless steel Bi-directional screw, prevent free water, an intensive intermixing. Next use degerminator (Japan technology ) to peeling, Then enter the milling section and sifting the flour, produce the produce super white flour, the fine meal, bran, germ, etc which according to client requirements and needs. Finally, use the auto weighing &packing scale packing products.
All maize milling machines are configured with the most suitable equipment according to the production line,
Including pneumatic mill, plan sifter, degerminater,vibrating cleaning sifter, stone remover and auto dampener. etc.
Provide the most perfect solution with the most advanced configuration, the highest quality and the lowest consumption.
Our projects are all over the world, such as in Zambia, Uganda, Ethiopia, Angola, South Africa, Malawi, Zimbabwe, Kenya, Nigeria, Congo, Cameroon, Mozambique, Namibia, Egypt, Pakistan, India, Thailand, Argentina, Brazil,Peru, etc.
FAQ: 1. Q: What mill does the Hongdefa machine use?
A: Advanced pneumatic roller mills, The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.
And the pulse generator can automatically adjust the feed at the entrance, saving time and effort
2. Q: What is the function of the Degerminator?
A: maize degerminator is applicable for taking the germ and bran out of the maize, at the same time polishing the maize/maize grits, get pure white /yellow maize meal, maize grits, maize samp, and is characteristic of the high volume of production, compact structure, and convenient maintenance, thus making it an ideal equipment for maize processing in the modern age.
3. Q: How to put the HDF maize mill plant into my existing workshop?
A: We have the most professional engineering team to design according to your actual plant size the most suitable line and meet clients' demand
4. Q: Does HDF maize mill produce both maize flour and maize grits at the same time?
A: We can design the production line according to the final product required by the customer, and produce flour and grits at the same time through the technological process of different configurations.

---
