Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Horizontal Bed Heavy Duty CNC Automatic Lathe
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Max. Turning Length
1000mm
Spindle Bore Diameter
82mm
Tool Turret
Electrical Turret 4-Station
Guideway
Horizontal CNC Lathe
Tailstock
Manual/Hydraulic Tailstock
Key Word
CNC Lathe Machine for Metal
Key Word 1
CNC Turn Lathe
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

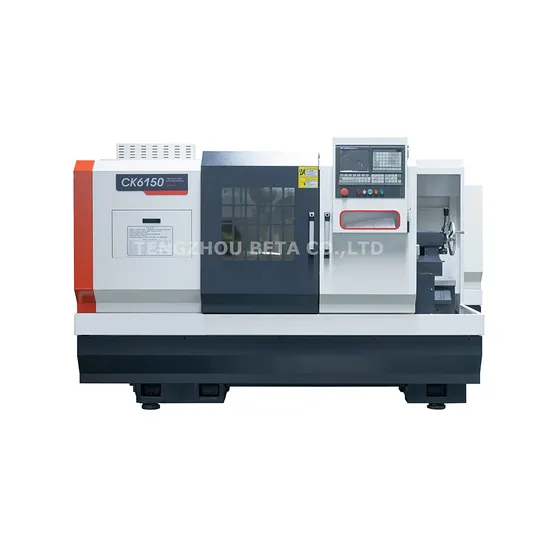

Chinese Metal Turning Horizontal Bed Heavy Duty CNC Automatic Lathe CK6150
Standard accessories:
Flat bed structure, hardened guideway,
width of guide 400mm, Max.swing over bed 500mm,
Spindle bore diameter 82mm(130mm is optional),
Distance between points 1000/1500/2000mm,
Spindle motor power 7.5kw,
Spindle frequency converter speed adjustment,
CNC controller GSK
10 inch manual 3-jaw chuck ,
4-way electric toolpost,
manual tailstock,
automatic coolant system and lubrication system,
work light, tools & Tool box, English operate manual
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Hydraulic tailstock,
6/8-station turret,
| Model | CK6150 |
| Max. swing over bed | Φ500 mm |
| Max. swing over cross slide | Φ250 mm |
| Spindle bore | Φ82mm (130mm optional) |
| Spindle nose | A2-8 (A2-11 optional) |
| Spindle speed | 1800 rpm |
| Spindle motor power | 7.5 kw |
| X/Z axis travel | 300mm, 1500 mm |
| X/Z axis torque | 7.5/10 N.m |
| X/Z axis rapid feeding speed | 8/10 m/min |
| X/Z axis position accuracy | 0.005 mm |
| X/Z axis repeatability | 0.005 mm |
| Tool bar section | 25*25 mm |
| Tailstock sleeve dia. | Φ75 mm |
| Tailstock sleeve travel | 200 mm |
| Tailstock taper | MT5 |
| N.W. | 3000 kg |
| Machine dimension | 3150*1700*1820mm |
>>
