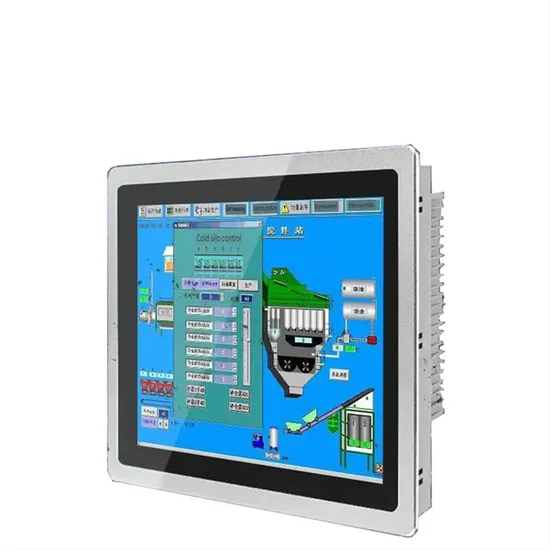

Desktop 8 Inch 10 Inch Capacitive Touch Screen One Industrial Panel Pc Capacitive Touch Screen Pc
| Product Name: | Open Frame Touch Monitor | Display Type: | Active Matrix TFT LCD, LED Backlight |
| Diagonal Dimension: | 23.6" diagonal | P/N: | GT-TM-2365A-CTW-HD-DP |
| Display Size: | 572.6mm(W)x341.6mm(H), Thickness: 48 mm | Active Area: | 525.20mm(H) x 292.20mm(V) |
| Resolution: | 1920 x 1080 | Display Colors: | 16.7M |
| Brightness: | 250nits | Contrast Ratio: | 1000:1 |
| Response time: | 8ms | Touch Type: | Capacitive,10 points touch |
| MTBF: | 50,000 Hours | Video Formats: | VGA ,DVI ,HDMI,DP(optional ) |
| View Angle: | Horizontal (left / right): ± 89 ° or total 178 ° | View Angle: | Vertical (up / down): ± 89 ° or a total of 178 ° |
| Temperature: | Operating: 0°C to 40°C | Temperature: | Storage: -20°C to 60°C |
| Humidity: | Operating: 20% to 80%(Non-condensing) | Humidity: | Storage: 10% to 90% (Non-condensing) |
| OSD: | Digital OSD | Mounting Options: | VESA Mounting,Open Bracket Mounting |
| Warranty: | 1 year | Agency Approvals: | FCC,CE,CB,CCC,RoHS,HDMI |
| Input Video Connector: | Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector. |
| Power: | External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS,External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS,(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm); |
| User Controls: | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu. |
