5kw Vertical Wind Turbine with High Efficiency, Low Noise Vertical Axis Wind Turbine Generator

Product Description

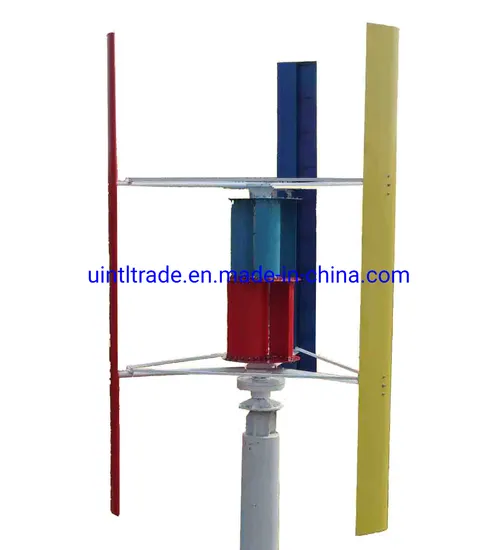

UVWT-SERIES VERTICAL WIND TURBINE
Glad that you are interested in our UVWT series vertical wind turbine product. The power of the vertical axis wind turbine we can supply is from 100W to 20KW. Voltage can be customized in a safe range from 12V to 480V. At the same time, we have professional engineer team that can help you design suitable off grid generation system, on grid generation system, off/on grid hybrid storage generation system, wind solar hybrid system, etc according to your situation. We can also provide you with installation instructions and suggestions to ensure your installation and use smoothly.
Product features and specifications
1. Low start wind speed, high wind energy utilization;
2. Easy installation, tube or flange connection optional;
3. Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output;
4. Body of casing aluminum alloy, with two bearings swivel, making it survive stronger wind and un more safely;
5. Patented permanent magnet generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

Model	UVWT-5KW
Rated power	5KW
Max Power	6KW
Blade length	4.5 m
Blade rotating diameter	3m
Blade materials and quantity	9 pcs* Aluminum alloy blades (6 inner blades)
Rated rotor speed	150r/min
Start working wind speed	2.5m/s
Rated speed	9m/s
Security wind speed	50(m/s)
Generator style	3-phase AC coreless axial flux PMG
Output voltage options	120/220vac
Wind turbine top part weight	500kg
Material of enclosure	Aluminum alloy
Material of magnet steel	N38SH neodymium-iron-boron 38sh
Service life	>20 years
Wind adjustment	Automatically adjust to windward

Customized complete system
vertical wind turbine off grid system

vertical wind turbine on grid system

Factory production department
Product packaging
Projects
Warranty and after-sales service
Warranty of vertical wind turbine: 3 years for free.Warranty of other components and device: 2 years for free.
System deisgn working life time: no less than 20 years.
Attn:
1. The warranty period starts from the date of the bill of lading.
2. Man-made damage is not covered by the warranty.
3. During the warranty period, the cost incurred due to quality problems shall be borne by our company.
We will charge the corresponding cost if there are replacement parts and other costs outside the warranty period.
4. If necessary, we will provide customers with comprehensive installation instructions and always provide technical support.
FAQ1. Q: The advantages of UVWT-series vertical wind turbine?A: Our vertical wind turbines are highly adaptable to different wind directions, and the blades are specially designed, normal operation will not be affected when the wind direction changes constantly. At the same time, a design of 6 small blades has been added to improve the operating efficiency of the wind turbine at low wind speeds. 2. Q: How to design wind turbine generation system?
A: You can design system yourself and just order our wind turbine top part. And we also suggest order the whole system from us, which can save your time and cost. We have professional engineer team and customize generation system according to different clients' requirements, like wind turbine off grid generatin system, wind turbine on grid system, wind turbine on/off grid hybrid storage system. We can aslo design wind solar hybrid system for you.
3. Q: How to choose the power of UVWT-series vertical wind turbine?
You can tell us how much Kwh electricity you use every day or how much Kwh electricity you want to get from the power generation system every day, then we can suggest the most suitable power.4. Q: How to install UVWT-series vertical wind turbine?A: It is easy to install the wind turbine, we will also supply detailed installation manual. For high power wind turbine, if you plan to install on the ground, it needs to use a crane to assist installation.
Our company welcomes your inquiries all day long. If you are interested in purchasing, or have questions, please contact us online directly through trademessager(TM), or communicate via email below, or directly add our Whatsapp, Wechat, Skype, etc.

---
