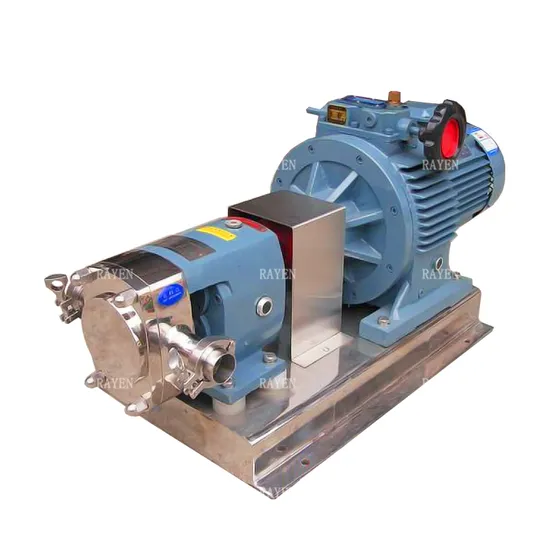

SUS304 Sanitary Stainless Steel Food Grade Honey Rotary Lobe Pump Chocolate Pump

Product Description

Made-in-China Leading Company TOP1 Supplier
SUS304 sanitary stainless steel honey gear pump chocolate pump
Lobe Pump
SUS304 sanitary stainless steel honey gear pump chocolate pump is suitable for transporting high viscosity, ensity and any medium containing particle.High pressure of out let makes sure the long distance and high resisitance transportation with stable capacity used widely in health ,food ,chemical, industial areas .

Material	SS304 or SS316L
Capacity	0-100T (Customized)
Pressure	0-8bar
Viscosity	1-1000000pas
Rotors type	butterfly rotors/Trefoil rotor
Temperature	0-200 celsius degree
Relief valve	NO		0-3bar
Mechnical seal type	Sinlge mechanical seal		Double flushed mechanical seal
Connection type	Clamp	Union	Flange
Inlet outlet direction	Left and right or Up and down
Jacket	No		hotwater
Motor type	Normal	Planetary	inverter
Speed	0-1000RPM

1. Rotor pump is suitable for transporting high viscosity, ensity and any medium containing particle. 2. The rotational speed is low, generally keep already existing quality not changing , any physics and chemistry properties won't be changed. 3. Stainless Steel Lobe Pump can be also called colloidal pump. All liquid flowing parts are made of stainless steel. It can transmit high viscosity, thickness and with particle medium. 4. High pressure of out let makes sure the long distance and high resisitance transportation with stable capacity used widely in food ,chemical, industial areas . 5. Suitable temperature: -30 °C to 200 °C

Technical Parameters
Model	Capacity/Per centum rotate (L)	Speed(RPM)	Flow(L/H)	Power(KW)
RAY-3R	3L	100-500	300-800	0.55
RAY-6R	6L	100-500	650-1600	0.75
RAY-8R	8L	100-500	850-2160	1.5
RAY-12R	12L	100-500	1300-3200	2.2
RAY-20R	20L	100-500	2100-5400	3
RAY-30R	30L	100-500	3200-6400	4
RAY-36R	36L	100-500	3800-7600	4
RAY-52R	52L	100-500	5600-11000	5.5
RAY-66R	66L	100-500	7100-14000	7.5
RAY-78R	78L	100-500	9000-18000	7.5
RAY-100R	100L	100-500	11000-22000	11
RAY-135R	135L	100-500	15000-30000	15
RAY-160R	160L	100-500	17000-34000	18.5
RAY-200R	200L	100-500	21600-43000	22
We can customize the equipment according to customer requirements.

1.Screw cap 2.Pump cover 3.Seal ring 4.Cap 5.Seal ring 6.Rotor 7.Pump cavity 8.Mechanical seal (stationary ring) 9.Mechanical seal(moving ring) 10.Seal ring 11.Bearing sleeve 12.Bearing cover 13.Seal gasket 14.Rubber oil seal 15.Bearing seat 16.Seal gasket 17.Bearing 18.Upper shaft 19.Lower shaft 20.Helicalgear 21.Stop washer 22.Cap 23.Screw 24.Pump body 25.Bearing 26.Rubber oil seal 27.Seal gasket 28.Bearing cover 29.Pin
Sanitary Rotary Lobe pump More Pictures

1. Q: Are you manufacturer or trading company?

A: RAYEN is a professional manufacturer.

2.Q: How could we confirm the details of the products?

A: RAYEN will provide the detail drawings for you to confirm.

3.Q: How long the warranty will be?

A: 1 Year warranty.

4.Q: Do you take L/C?

A: Yes, we accept Western Union, T/T and irrevocable L/C payable

5.Q: Can we become your distributor in our country?

A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.

---
